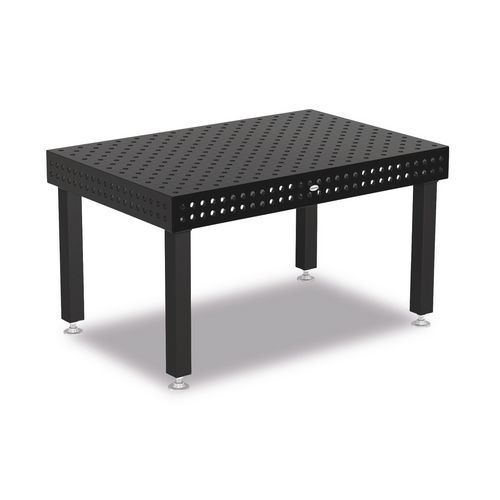

Professional Extreme 8.7 1500x1000x150 Plasma nitrided Diagonal grid

Surface hardness up to 850 Vickers with diagonal grid

2.653,00 EUR excl. Tax / pc(s).
3.157,07 EUR incl. 19% Tax / pc(s).

Prices are recommended retail prices. Retailer prices may vary.

Sicherheits- und Warnhinweise

Safety and warning notices

Art.-No. 190220035XD7

Are you interested in this product?

Put a request

Find Trader

Productdetails

Bore Ø 22 mm
Bores surface in diagonal grid
Through hardened tool steel X8.7 and plasma nitriding
The less stressed side plates are made of steel S355J2+N for cost reasons
Rounded corners, edges and holes
Including scaling on the surface

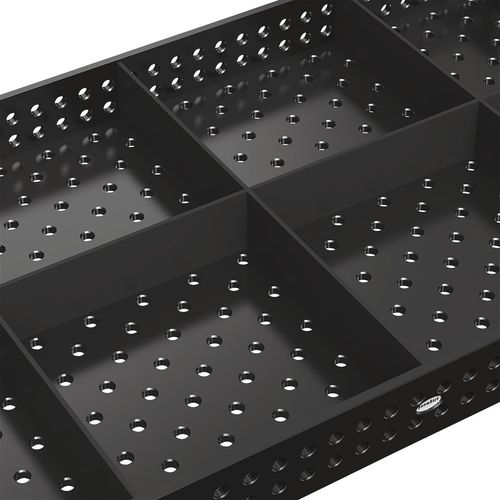

Construction reinforced by ribs

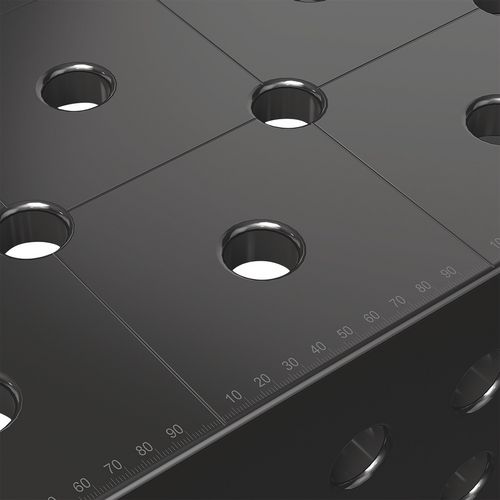

Grid lines enable precise setups
Special equipment for welding tables is available on request

Bore Ø 22 mm
Bores surface in diagonal grid
Through hardened tool steel X8.7 and plasma nitriding
Side plates made of steel S355J2+N plasma nitrided
Rounded corners, edges and bores
Including scaling on the surface
Construction reinforced by ribs
Grid lines allow precise setups

Data sheets
Sicherheits- und Warnhinweise
Safety and warning notices

Table feet	4
Load capacity approx.	2000 kg
Explanation load capacity approx.	Maximum recommended total static load with uniform load distribution
VPE	1

Dimensions and weights
Table height	850 mm

Table side
Height	150 mm
Borehole spacing	50 mm
Basic hardness approx.	165 – 220 Vickers
Surface hardness approx.	450 – 750 Vickers

Tabletop
Length	1500 mm
Width	1000 mm
Material	Through hardened tool steel X8.7, plasma nitrided
Explanation material	Side plate made of high quality steel S355J2+N, plasma nitrided
Borehole diameter	22 mm
Borehole spacing	50 mm
Material thickness	17 – 19 mm
Basic hardness approx.	280 – 340 Vickers
Surface hardness approx.	450 – 850 Vickers

Unit: pc(s).
Packaging unit: 1

4 Table legs 700 x 80 x 80 mm with foot plate Ø 90 mm
