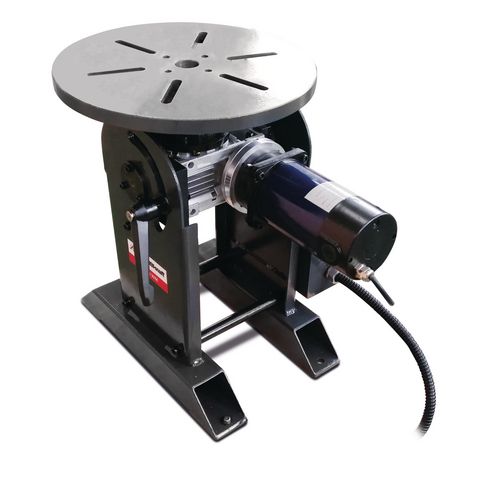

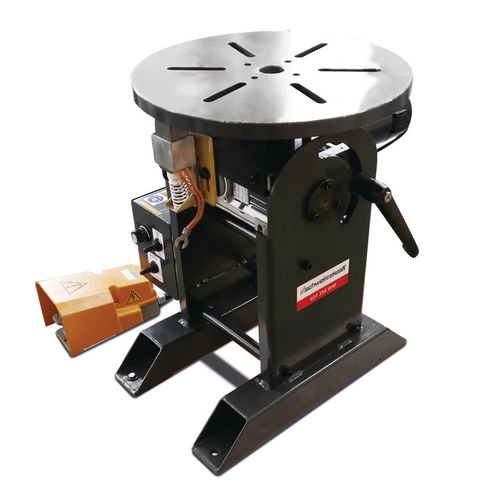

Rotary Welding Table
SDT 220 WM
For fast and convenient welding processing from all sides
899,00
EUR excl. Tax / pc(s).
1.069,81 EUR incl. 19% Tax / pc(s).
1.069,81 EUR incl. 19% Tax / pc(s).
Promotional price *
849,00 EUR excl. Tax / pc(s).1.010,31 EUR incl. 19% Tax / pc(s).
Prices are recommended retail prices. Retailer prices may vary.
* Promotional price valid until 31.08.2025 in Germany.
Art.-No. 1541220
Are you interested in this product?
Put a request
Find Trader
Productdetails
- Simple operation

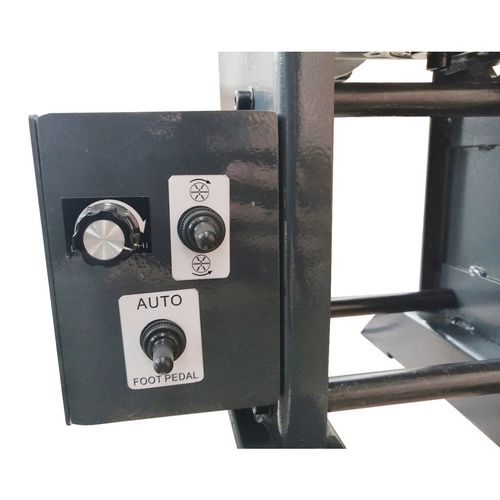

- Simple angle adjustment via rotary knob
- Infinitely variable speed of the disk with clockwise/anticlockwise rotation
- Control electronics protected by robust and closed housing

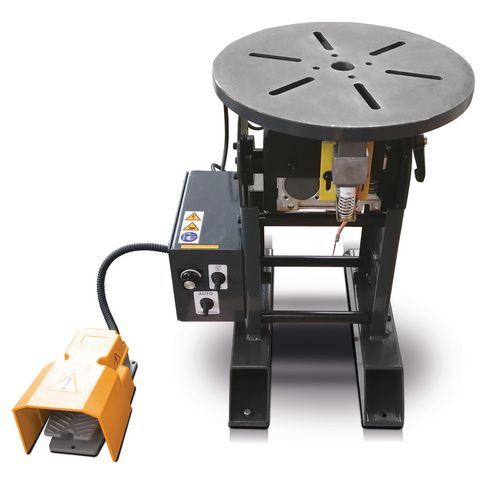

- Foot switch for start/stop
- For fast and convenient welding from all sides
- Simple angle adjustment via rotary knob
- Infinitely variable speed of the plate with right/left rotation
| Dimensions and weights | |
|---|---|
| Length approx. | 470 mm |
| Width/depth approx. | 400 mm |
| Height approx. | 450 mm |
| Weight approx. | 34 kg |
| Electrical Data | |
|---|---|
| Power Input | 0.15 kW |
| Supply voltage | 230 V |
| Mains frequency | 50 Hz |
| Technical data | |
|---|---|
| Drive type | manual |
| Load-bearing capacity horizontal table position | 220 kg |
| Load-bearing capacity vertical table position | 100 kg |
| Speed | 0 – 5 min¯¹ |
| Permissible welding current | 80 A |
| Table tilt angle | 0 – 135 ° |
| VPE | 1 |
Unit: pc(s).
Packaging unit: 1
Packaging unit: 1
