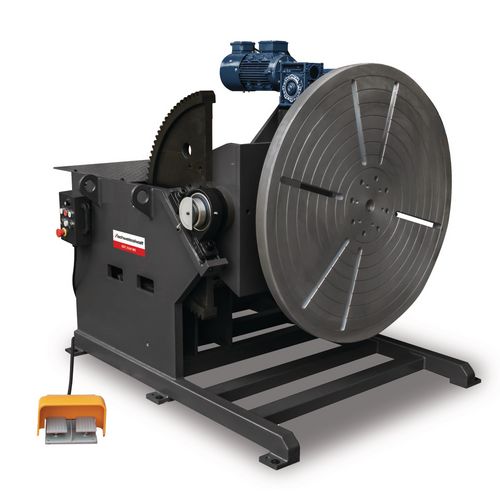

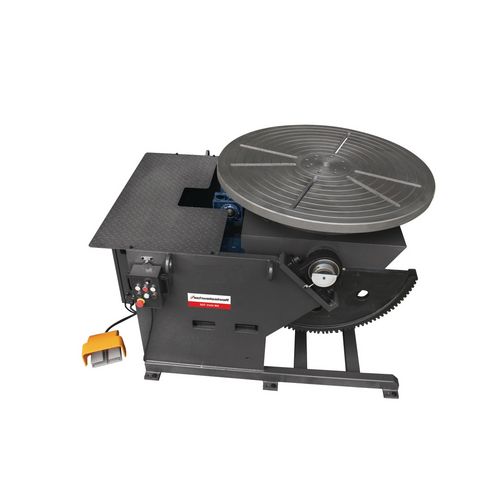

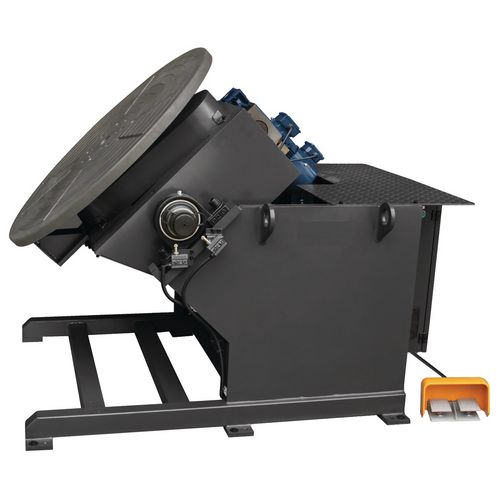

    Rotary Welding Table

    SDT 2500 WE

    For fast and convenient welding processing from all sides

    16.950,00 EUR excl. Tax / pc(s).
    20.170,50 EUR incl. 19% Tax / pc(s).
    Promotional price *
    15.999,00 EUR excl. Tax / pc(s).
    19.038,81 EUR incl. 19% Tax / pc(s).

    Prices are recommended retail prices. Retailer prices may vary.
    * Promotional price valid until 31.08.2025 in Germany.

    Sicherheits- und Warnhinweise

    Safety and warning notices

    Art.-No. 1541925

    Are you interested in this product?
  • Put a request
  • Find Trader

    • Productdetails

    • Simple operation
    • Simple angle adjustment via rotary knob
    • Infinitely variable speed of the disk with clockwise/anticlockwise rotation
    • Control electronics protected by robust and closed housing
    • Foot switch for start/stop



    • Simple angle adjustment via rotary knob
    • Infinitely variable speed of the disk with clockwise/anticlockwise rotation



    Data sheets
    Sicherheits- und Warnhinweise
    Safety and warning notices
    Dimensions and weights
    Rotary disc diameter1100 mm
    Length approx.1735 mm
    Width/depth approx.1276 mm
    Height approx.1050 mm
    Weight approx.1550 kg
    Electrical Data
    Power Input1.5 kW
    Supply voltage400 V
    Mains frequency50 Hz
    Technical data
    Drive typeelectrical
    Load-bearing capacity horizontal table position2500 kg
    Load-bearing capacity vertical table position2000 kg
    Speed0.1 – 1.2 min¯¹
    Permissible welding current800 A
    Table tilt angle0 – 135 °
    VPE1
    Unit: pc(s).
    Packaging unit: 1
