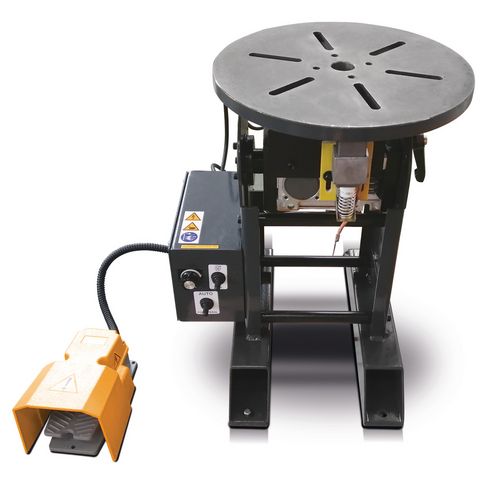

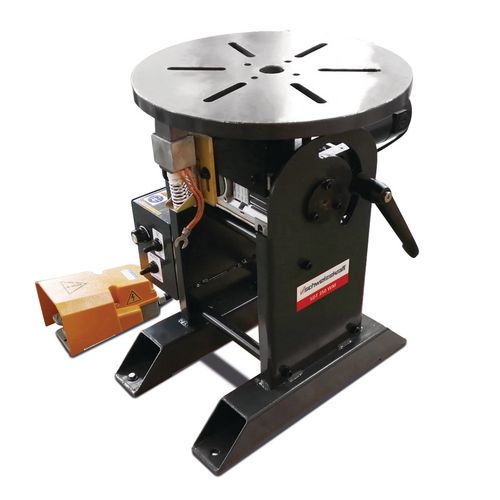

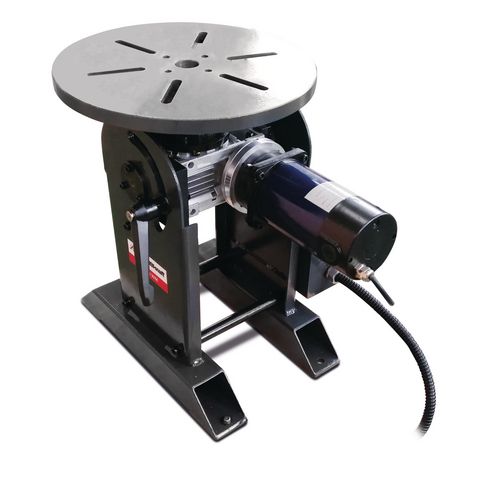

Rotary Welding Table
SDT 350 WM
with manual angle adjustment
1.139,00
EUR excl. Tax / pc(s).
1.355,41 EUR incl. 19% Tax / pc(s).
1.355,41 EUR incl. 19% Tax / pc(s).
Promotional price *
1.069,00 EUR excl. Tax / pc(s).1.272,11 EUR incl. 19% Tax / pc(s).
Prices are recommended retail prices. Retailer prices may vary.
* Promotional price valid until 31.08.2025 in Germany.
Art.-No. 1541350
Are you interested in this product?
Put a request
Find Trader
Productdetails
- For quick and easy welding from all sides
- Easy to use
- Infinitely variable speed of the plate with clockwise/anticlockwise rotation

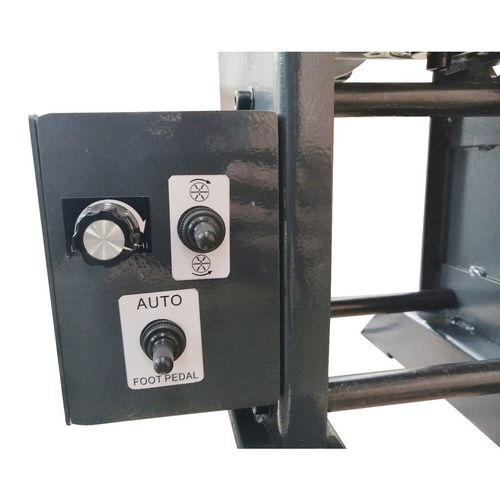

- Control electronics protected by robust and closed housing
- Foot switch for start/stop
- Infinitely variable speed of the plate with right/left rotation
- Foot switch for start/stop
| Dimensions and weights | |
|---|---|
| Max. bolt circle | 295 mm |
| Rotary disc diameter | 330 mm |
| Length approx. | 410 mm |
| Width/depth approx. | 470 mm |
| Height approx. | 475 mm |
| Weight approx. | 38 kg |
| Electrical Data | |
|---|---|
| Power Input | 125 W |
| Supply voltage | 230 V |
| Mains frequency | 50 Hz |
| Technical data | |
|---|---|
| Drive type | manual |
| Load-bearing capacity horizontal table position | 350 kg |
| Load-bearing capacity vertical table position | 120 kg |
| Speed | 0 – 5 min¯¹ |
| Permissible welding current | 300 A |
| Table tilt angle | 0 – 135 ° |
| Cable length foot switch | 2 m |
| VPE | 1 |
Unit: pc(s).
Packaging unit: 1
Packaging unit: 1
