    Brandimage to Product USZ 216

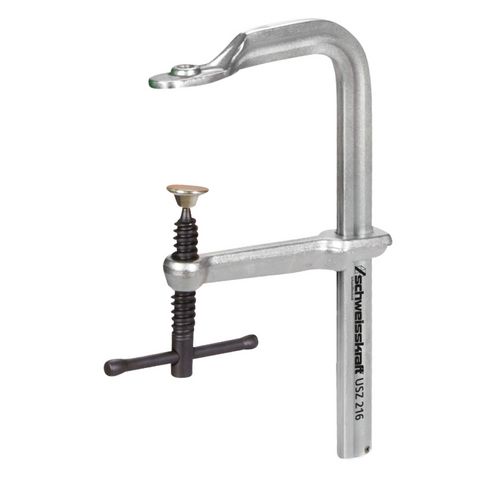

    All-steel screw clamp

    USZ 216

    4 functions in 1, with toggle handle

    48,50 EUR excl. Tax / pc(s).
    57,72 EUR incl. 19% Tax / pc(s).

    Prices are recommended retail prices. Retailer prices may vary.

    Art.-No. 1790001

    Are you interested in this product?
  • Put a request
  • Find Trader

    • Productdetails

    • tempered sliding and fixed hanger made of one piece for springy and elastic clamping
    • Fixed bracket and pressure plate made of one piece, tempered and torsion resistant

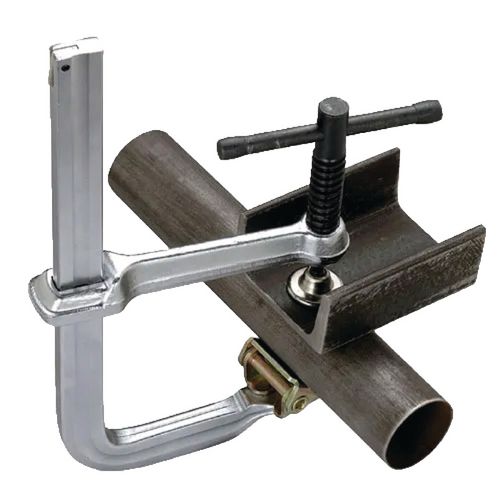

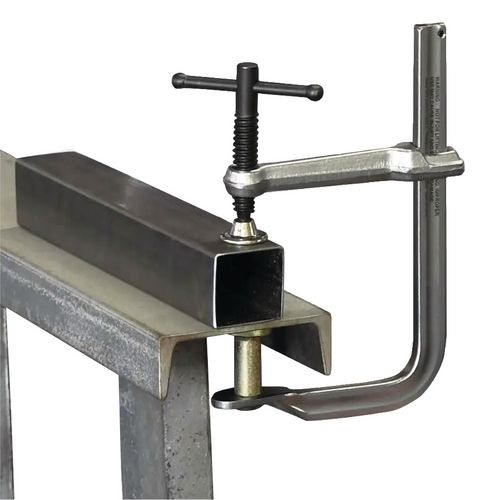

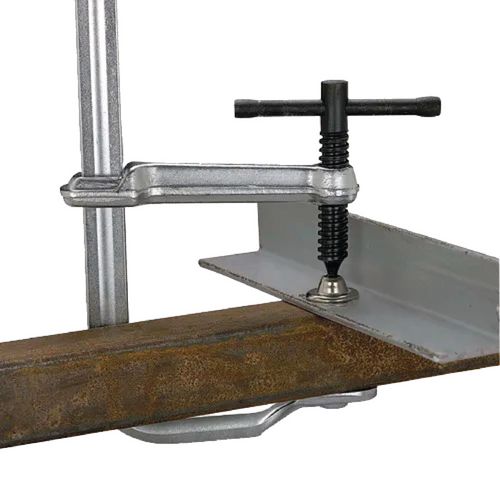

    • for clamping, pipes clamping, spreading and crossing

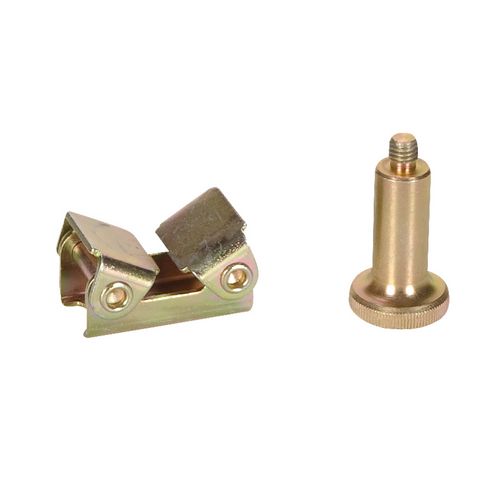

    • Supplied with V-clamping attachment for pipes as well as an additional block for exceeding
    • Surface coated spindle with trapezoidal thread is smooth and does not jam
    • best power transmission when tensing by the rounded ends on the handle

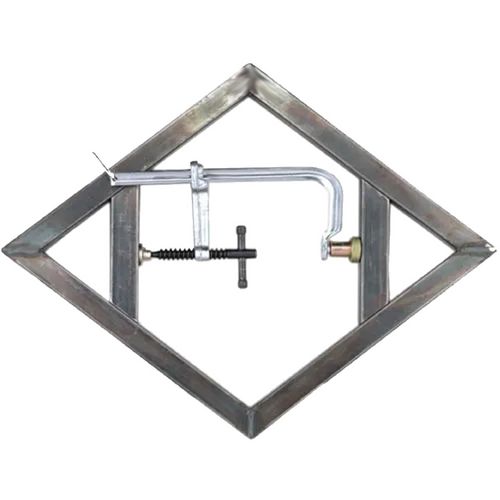

    • quick conversion of the slide bar for spreading applications by reversing the clamping rail and the additional block
    • applicable to wood and steel



    Span width216 mm
    Extension121 mm
    Fixed bracket cross-section24x12 mm
    Max. clamping force550 kg
    ThreadM 10
    VPE1
    Dimensions and weights
    Weight approx.1,9 kg
    Unit: pc(s).
    Packaging unit: 1

    • Standard including changeable V-clamping attachment and additional block for exceeding and spreading
