| Container | Mandrel Coil |
| Coil type designation | K 300 |

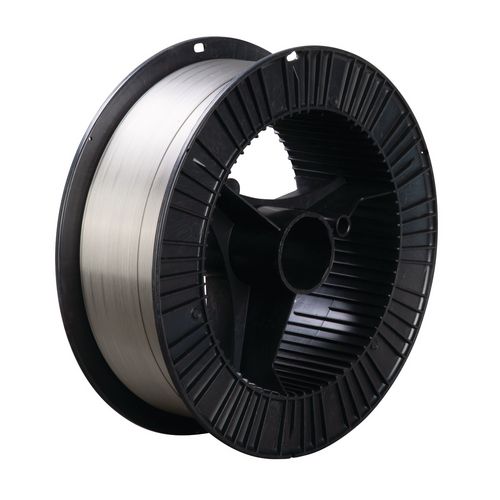

MAG stainless steel welding wire
1.4842 DIN 8556: SG X 12 Cr Ni 25 20
From 752,00
EUR excl. Tax / coil
From 894,88
EUR incl. 19% Tax / coil
Prices are recommended retail prices. Retailer prices may vary.
Are you interested in this product?
Put a request
Find Trader
Variations
| Dimensions and weights | General | Price | ||||
|---|---|---|---|---|---|---|
| Title | Art.-No. | Diameter (mm) | VPE | EUR excl. Tax | EUR incl. 19% Tax | |
| SG X 12 Cr Ni 25 20 / D 300 / 15.0 kg / 0.8 mm | 1130708 | 0.8 | 1 | 779,00 | 927,01 | |
| SG X 12 Cr Ni 25 20 / D 300 / 15.0 kg / 1.0 mm | 1130710 | 1,0 | 1 | 759,00 | 903,21 | |
| SG X 12 Cr Ni 25 20 / D 300 / 15.0 kg / 1.2 mm | 1130712 | 1,2 | 1 | 752,00 | 894,88 | |
Select Attributes
Dimensions and weights
- Diameter
General
- VPE
Price
- excl. Tax
- incl. 19% Tax
Productdetails
1.4842 DIN 8556: SG X 12 Cr Ni 25 20
- for the following basic materials:
1.4832, 1.4837, 1.4841, 1.4845, 1.4840 - Welding of heat-resistant austenitic steels. The steel can be used in air up to 1100 ° C. Scale resistant up to 1100 ° C
| Dimensions and weights | |
|---|---|
| Weight approx. | 15 kg |
| Technical data | |
|---|---|
| Alloy | alloyed |
| Material number | 1.4842 |
| Standard designations | DIN 8556 |
| Base materials | 1.4832, 1.4837, 1.4841, 1.4845, 1.4840 |
| Inert gas | Argon S 1 - S 3, mixed gases |
| AWS/AISI | 310 |
| DIN | X 12 CrNi 25 20 |
| Chemical component C | 0.12 % |
| Chemical component Si | 0,5 % |
| Chemical component Mn | 1.7 % |
| Chemical component Cr | 25 % |
| Chemical component Ni | 20.5 % |
| Chemical component S max. | 0.015 % |
| Chemical component P max. | 0.02 % |
| Yield stress | 300 N/mm² |
| Tensile strength | 550 N/mm² |
| Elongation | 30 5 |
| Notched bar impact work | 65 J |
Unit: coil
