| Built-in welding torch | |
|---|---|
| Cooling method | air-cooled/water-cooled |
| Weight built-in welding torch | 6 kg |
| collision sensor | Standard |
| Wire feeding speed | 2.0 – 8 m/min |
| Wire feeding diameter | 0.8 – 1.2 mm |
Welding robot station
Craft-Cobot 1.3 500A MIG LowSpatter
Collaborative robot
Price upon request
Prices are recommended retail prices. Retailer prices may vary.
Art.-No. 1383010
Are you interested in this product?
Put a request
Find Trader
Productdetails
- Versatile cobot for welding, handling and assembly processes
- Safe for working with humans in mixed working environments
- Easy to operate and quick to set up without complex programming
- Ideal for flexible production lines and small to medium series
- Supports various automation applications such as welding and handling
| Control | |
|---|---|
| electrical cabinet | X3 |

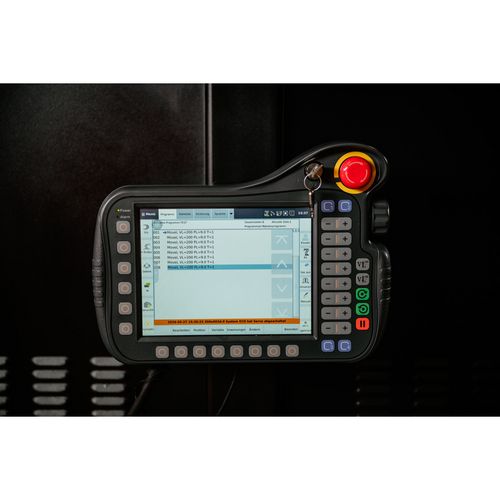

| Teaching pendant | C-Type |
| Teaching pendant cabel length | 6 m |
| Voltage of the control | 230 V |
| Phases | 1 |
| Product dimensions control cabinet | 175 x 495 x 330 mm |
| Control cabinet weight | 13 kg |
| Cooling | |
|---|---|
| Water cooler supply voltage | 230 V |
| Water cooler phase(s) | 1 |
| Cooling capacity | 1700 W |
| Water pump power | 370 W |
| Rated current | 0.8 A |
| Delivery head of the pump | 30 m |
| Flow | 8 l/min |
| Water cooler Ambient temperature | -20 – 40 °C |
| Refrigerant | coolant for standard welding power source |
| Inverter unit | |
|---|---|
| Inverter unit type | CRP-DS500-P (full digital IGBT) |
| Inverter unit supply voltage | 400 V |
| Inverter unit phase(s) | 3 |
| Rated input | 23000 W |
| Welsing method | CO2, MIG/MAG, coldArc |
| Welded base material | unalloyed steel, stainless steel |
| Rated output current | 30 – 500 A |
| Rated load rate | 100 % |
| Inverter unit length approx. | 426 mm |
| Inverter unit width approx. | 550 mm |
| Inverter unit height approx. | 532 mm |
| Inverter unit Weight approx. | 56 kg |
| Manufacturer infos | |
|---|---|
| Manufacturer | Chengdu CRP Robot Technology Co., Ltd. |
| Address | No. 188, Huayue Road, Chenghua District, Chengdu City |
| www.crprobot.com | |
| Robot | |
|---|---|
| Number of axes | 6 |
| Maximum Payload | 10 kg |
| Coverage | 1320 mm |
| Repeated positioning accuracy | +/- 0.03 mm |
| max. travel A1 | -360 / 360 ° |
| max. travel A2 | -360 / 360 ° |
| max. travel A3 | -75 / 255 ° |
| max. travel A4 | -360 / 360 ° |
| max. travel A5 | -360 / 360 ° |
| max. travel A6 | -360 / 360 ° |
| max. speed A1 | 107 °/s |
| max. speed A2 | 107 °/s |
| max. speed A3 | 200 °/s |
| max. speed A4 | 250 °/s |
| max. speed A5 | 250 °/s |
| max. speed A6 | 250 °/s |
| Torque / Load capacity A4 | 50 Nm/kgm² |
| Torque / Load capacity A5 | 50 Nm/kgm² |
| Torque / Load capacity A6 | 50 Nm/kgm² |
| Ambient temperature | 0 – 45 °C |
| Body interface | 10 Pin |
| Weight | 37.8 kg |
| Installation mode | Standard, upside down, wall mounting |
| Protection class mechanics | IP 54 |
| Protection class wrist | IP 54 |
| Wire feed | |
|---|---|
| Wire feed unit length approx. | 200 mm |
| Wire feed unit width approx. | 170 mm |
| Wire feed unit height approx. | 160 mm |
| Wire feed unit weight approx. | 6 kg |
| VPE | 1 |
Unit: pc(s).
Packaging unit: 1
Packaging unit: 1
