| Built-in welding torch | |
|---|---|
| Power at ED 60% | 350 A |
| Cooling method | air-cooled/water-cooled |
| Weight built-in welding torch | 6 kg |
| collision sensor | Standard |
| Wire feeding speed | 2.0 – 8 m/min |
| Wire feeding diameter | 0.8 – 1.2 mm |
Welding robot station

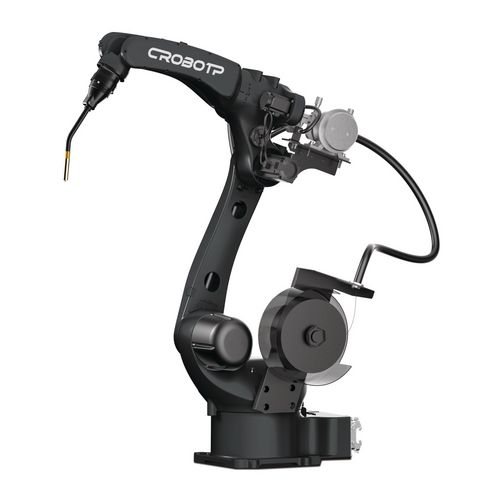

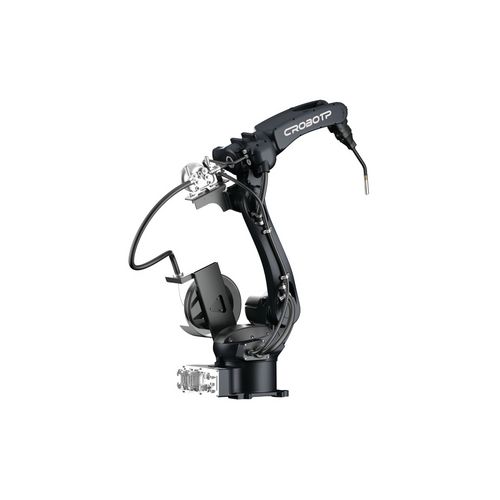

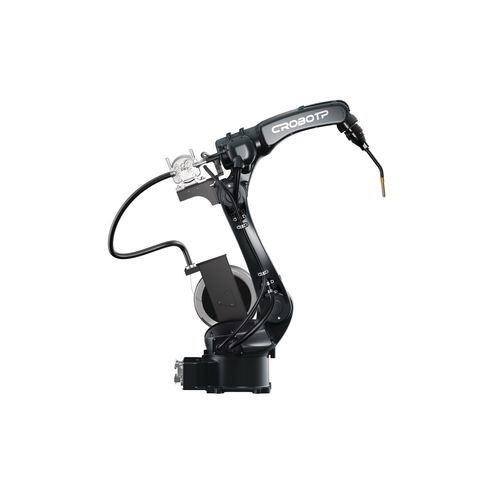

Craft-Robot 1.4 ColdMetal 350A MIG
Industrial welding robots arc welding
Price upon request
Prices are recommended retail prices. Retailer prices may vary.
Art.-No. 1382000
Are you interested in this product?
Put a request
Find Trader
Productdetails
- High-speed welding robot for MAG/MIG processes
- Optimized software for 20 % faster cycle times
- Dust-protected axes and integrated cables for clean design
- Supports functions such as shingled seam welding and constant penetration depth
- Compatible with powerful welding power sources for thin and medium sheets
- Ideal for automotive construction, metal furniture and series production
| Control | |
|---|---|
| electrical cabinet | G9A |

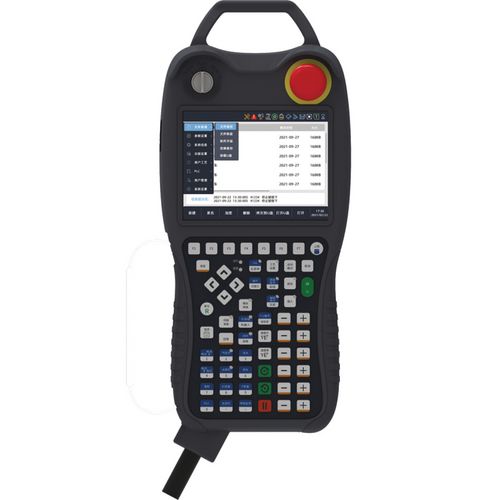

| Teaching pendant | E-Type |
| Teaching pendant cabel length | 6 m |
| Voltage of the control | 400 V |
| Phases | 3 |
| Product dimensions control cabinet | 550 x 425 x 725 mm |
| Control cabinet weight | 90 kg |
| Cooling | |
|---|---|
| Water cooler supply voltage | 230 V |
| Water cooler phase(s) | 1 |
| Cooling capacity | 1700 W |
| Water pump power | 370 W |
| Rated current | 0.8 A |
| Delivery head of the pump | 30 m |
| Flow | 8 l/min |
| Water cooler Ambient temperature | -20 – 40 °C |
| Refrigerant | coolant for standard welding power source |
| Inverter unit | |
|---|---|
| Inverter unit type | CRP-DS350-SL (full digital IGBT) |
| Inverter unit supply voltage | 400 V |
| Inverter unit phase(s) | 3 |
| Rated input | 18000 W |
| Welsing method | CO2, MIG/MAG, coldArc |
| Welded base material | unalloyed steel, stainless steel |
| Rated output current | 30 – 350 A |
| Rated load rate | 60 % |
| Inverter unit length approx. | 426 mm |
| Inverter unit width approx. | 550 mm |
| Inverter unit height approx. | 496 mm |
| Inverter unit Weight approx. | 56 kg |
| Manufacturer infos | |
|---|---|
| Manufacturer | Chengdu CRP Robot Technology Co., Ltd. |
| Address | No. 188, Huayue Road, Chenghua District, Chengdu City |
| www.crprobot.com | |
| Robot | |
|---|---|
| Number of axes | 6 |
| Maximum Payload | 6 kg |
| Coverage | 1468 mm |
| Repeated positioning accuracy | +/- 0,08 mm |
| max. travel A1 | (standard installation, upside down) -168 / 168, (wall mounting) -30 / 30 ° |
| max. travel A2 | -50 / 170 ° |
| max. travel A3 | -78 / 150 ° |
| max. travel A4 | -190/ 190 ° |
| max. travel A5 | -110 / 130 ° |
| max. travel A6 | -190 / 190 ° |
| max. speed A1 | 230 °/s |
| max. speed A2 | 230 °/s |
| max. speed A3 | 230 °/s |
| max. speed A4 | 430 °/s |
| max. speed A5 | 430 °/s |
| max. speed A6 | 630 °/s |
| Torque / Load capacity A4 | 10 Nm/kgm² |
| Torque / Load capacity A5 | 10 Nm/kgm² |
| Torque / Load capacity A6 | 3 Nm/kgm² |
| Ambient temperature | 0 – 45 °C |
| Body interface | 16 Pin |
| Weight | 155 kg |
| Installation mode | Standard, upside down, wall mounting |
| Protection class mechanics | IP 56 |
| Protection class wrist | IP 54 |
| Wire feed | |
|---|---|
| Wire feed unit length approx. | 280 mm |
| Wire feed unit width approx. | 230 mm |
| Wire feed unit height approx. | 160 mm |
| Wire feed unit weight approx. | 8 kg |
| Wire feed buffer weight approx. | 2 kg |
| VPE | 1 |
Unit: pc(s).
Packaging unit: 1
Packaging unit: 1
