| Built-in welding torch | |
|---|---|
| Wire feeding speed | 0 – 8 m/min |
| Wire feeding diameter | 1.0 – 1.6 mm |

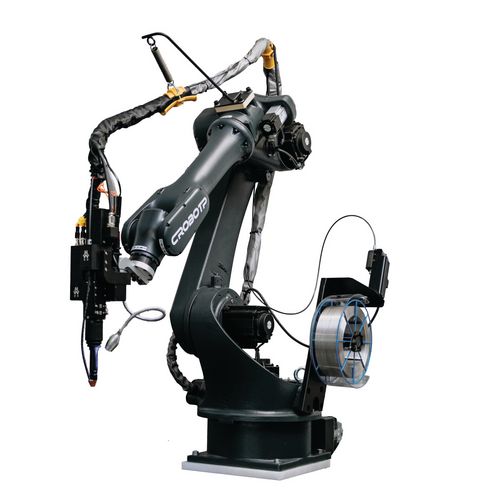

Welding robot station
Craft-Robot 1.8 2 kW
Industrial welding robots Laser welding
Price upon request
Prices are recommended retail prices. Retailer prices may vary.
Art.-No. 1381000
Are you interested in this product?
Put a request
Find Trader
Productdetails
- Specially developed for laser welding, cutting and cladding (build-up welding)
- High precision and stability for demanding applications
- Compact design for easy integration into laser systems
- Supports servo wire feed and soft start/stop functions

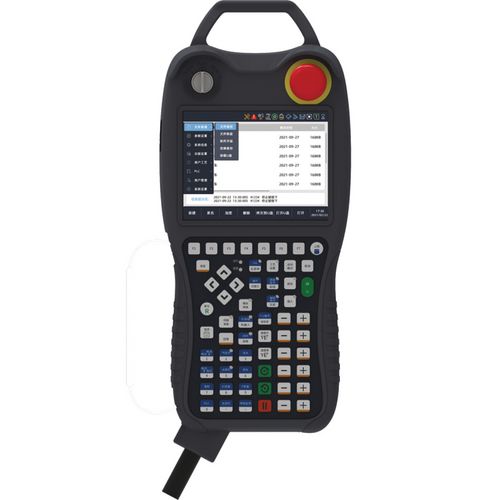

- Vertical teach pendant for fast and intuitive programming
- Integrated safety functions and UPS (uninterruptible power supply) for power failure protection
- Ideal for automotive industry, battery trays and complex metal components
| Control | |
|---|---|
| electrical cabinet | G18 |
| Teaching pendant | E-Type |
| Teaching pendant cabel length | 6 m |
| Voltage of the control | 400 V |
| Phases | 3 Ph |
| Product dimensions control cabinet | 647 x 1121 x 890 mm |
| Control cabinet weight | 240 kg |
| Cooling | |
|---|---|
| Water cooler supply voltage | 230 V |
| Water cooler phase(s) | 1 |
| Cooling capacity | 6000 W |
| Compressor power | 1200 W |
| Low temperature water heating | 500 W |
| Normal temperature water heating | 300 W |
| Water pump power | 250 W |
| Rated current | 13 A |
| Delivery head of the pump | 30 m |
| Flow | 30 l/min |
| Water cooler Ambient temperature | -5 – 45 °C |
| Refrigerant | R410a / 450g |
| Laser source / Built-in welding torch | |
|---|---|
| Laser source | Raycus |
| Fiber optic connectors | QBH |
| Laser power | 2000 W |
| Collimatior focal length | 100 mm |
| Focal length | 250 / 300 mm |
| Focus scanning range | X: 0-5 / Y: 0-5 mm |
| Protection method | Coaxial |
| Monitoring method | Coaxial CCD |
| Track frquency | 1500 Hz |
| Swing speed | <4000 mm/s |
| Lasergenerator | |
|---|---|
| Laser generator | RFL-C025H |
| Supply voltage of the laser generator | 230 V |
| Phases of the laser generator | 1 |
| Rated output power | 2000 W |
| Polarization direction | random |
| Power adjustment range | 10 – 100 % |
| Wavelength | 1080 +/-5 nm |
| Output power instability | +/- 1 % |
| Modulation frequency | 1 – 20000 Hz |
| Beam quality BPP | 1.8 mm*rad |
| Numerical Aperture | 0.11 |
| Fiber core diamter | 25 µm |
| Length output optical cable | 10 m |
| Maximum power consumption | 6000 W |
| Manufacturer infos | |
|---|---|
| Manufacturer | Chengdu CRP Robot Technology Co., Ltd. |
| Address | No. 188, Huayue Road, Chenghua District, Chengdu City |
| www.crprobot.com | |
| Robot | |
|---|---|
| Number of axes | 6 |
| Maximum Payload | 20 kg |
| Coverage | 1821 mm |
| Repeated positioning accuracy | +/- 0.05 mm |
| max. travel A1 | (standard installation, upside down) -167 / 167, (wall mounting) -30 / 175 ° |
| max. travel A2 | -30 / 175 ° |
| max. travel A3 | -80 / 150 ° |
| max. travel A4 | -190 / 190 ° |
| max. travel A5 | -135 / 135 ° |
| max. travel A6 | -360 / 360 ° |
| max. speed A1 | 169 °/s |
| max. speed A2 | 169 °/s |
| max. speed A3 | 169 °/s |
| max. speed A4 | 301 °/s |
| max. speed A5 | 220 °/s |
| max. speed A6 | 743 °/s |
| Torque / Load capacity A4 | 55 Nm/kgm² |
| Torque / Load capacity A5 | 55 Nm/kgm² |
| Torque / Load capacity A6 | 24 Nm/kgm² |
| Ambient temperature | 0 – 45 °C |
| Body interface | 16 Pin |
| Weight | 288 kg |
| Installation mode | Standard, upside down, wall mounting |
| Protection class mechanics | IP 54 |
| Protection class wrist | IP 67 |
| VPE | 1 |
Unit: pc(s).
Packaging unit: 1
Packaging unit: 1
| Kühlung | Wasser |
