    Filtering device

    SRF Maxi

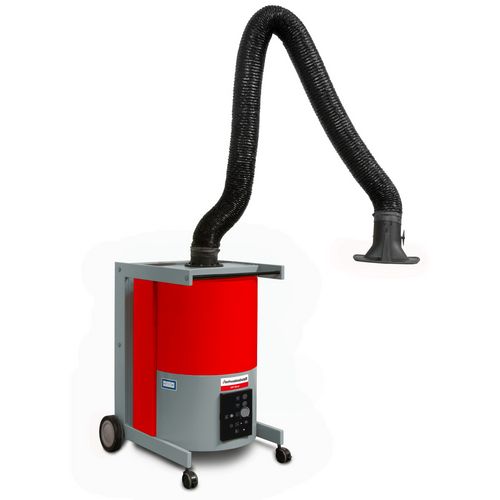

    Compact and robust filter unit with extraction arm for low to medium quantities of smoke and dust. For intense use.

    4.475,00 EUR excl. Tax / pc(s).
    5.325,25 EUR incl. 19% Tax / pc(s).
    Promotional price *
    4.229,00 EUR excl. Tax / pc(s).
    5.032,51 EUR incl. 19% Tax / pc(s).

    Prices are recommended retail prices. Retailer prices may vary.
    * Promotional price valid until 31.08.2025 in Germany.

    Sicherheits- und Warnhinweise

    Safety and warning notices

    Art.-No. 1800030

    Are you interested in this product?
  • Put a request
  • Find Trader

    • Productdetails

    • Application range: Medium smoke/dust quantities with regular use
    • Extraction hood can be rotated and swiveled 360 degrees
    • Three meter extraction arm
    • Little tracking of the extraction hood required
    • Safe operation due to rotating field detection
    • High efficiency due to long filter life
    • Safe operation due to filter monitoring
    • Contamination-free filter change
    • Automatic start/stop available as accessory
    • Quality Made in Germany



    Data sheets
    Sicherheits- und Warnhinweise
    Safety and warning notices
    Dimensions and weights
    Length approx.790 mm
    Width/depth approx.815 mm
    Height approx.1080 mm
    Weight approx.120 kg
    Electrical Data
    Drive motor output1,1 kW
    Supply voltage3 x 400 V
    Mains frequency50 Hz
    Extraction
    Max. extraction performance1100 m³/h
    Extraction arm typeHose design
    Filter
    Filtering process2-stage
    Area approx.42 m²
    Noise emission
    Sound pressure level70 dB(A)
    VPE1
    Unit: pc(s).
    Packaging unit: 1

    • 3 m extraction arm
