Welding smoke filter

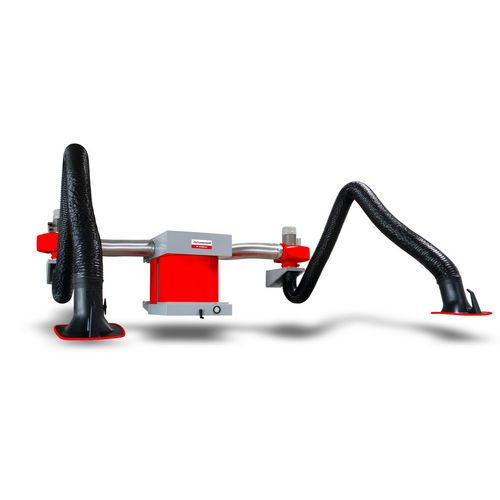

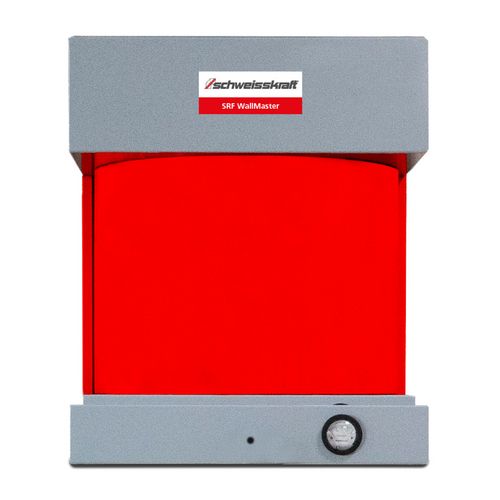

SRF WallMaster

Inexpensive welding smoke filter solution for modular expansion with high filter capacity and safe filter change

1.289,00 EUR excl. Tax / pc(s).
1.533,91 EUR incl. 19% Tax / pc(s).

Prices are recommended retail prices. Retailer prices may vary.

Art.-No. 1800005

Are you interested in this product?
  • Put a request
  • Find Trader
  • Productdetails



    Application

    • Medium smoke/dust volumes
    • Modular expansion in combination with detection elements
    • One to two workstations
      • Use
        • Increased safety through contamination-free filter change
        • High efficiency through large capacity and long filter service life
        • Cost-effective weldingsmoke filter can be easily retrofitted to existing detection elements
        • Reliable filter monitoring via manometer
        Properties
        • Refurbishable

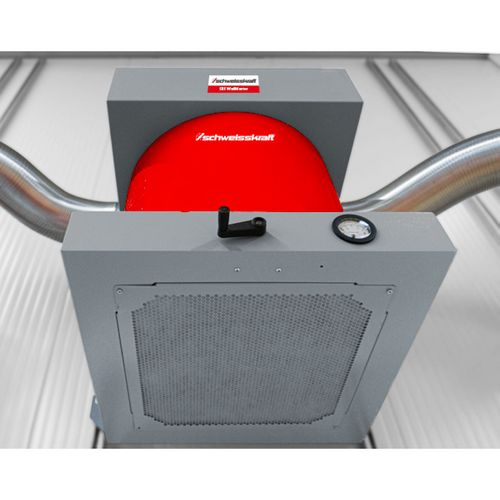

        • Integrated lifting device for filter change
        • Easy and quick installation
        • Compact and stable construction
        • Mechanical operation of the filter medium
      • High efficiency thanks to large capacity and long service life of the filter

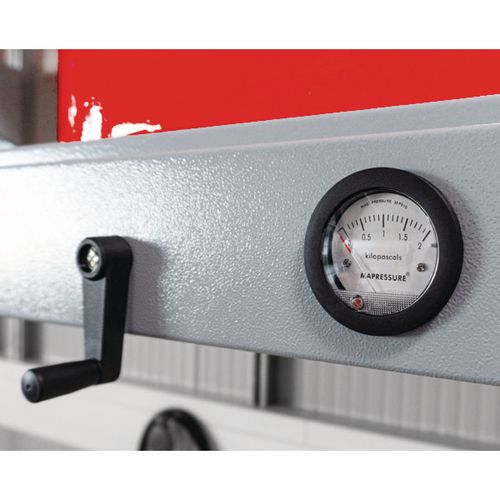

      • Reliable filter monitoring using a pressure gauge
      • Easy to retrofit



      Dimensions and weights
      Length approx.765 mm
      Width/depth approx.715 mm
      Height approx.795 mm
      Weight approx.65 kg
      Extraction
      Max. extraction performance1600 m³/h
      Filter
      Filtering process2-stage
      Area approx.42 m²
      VPE1
      Unit: pc(s).
      Packaging unit: 1
