Pillar gear drill with cross table

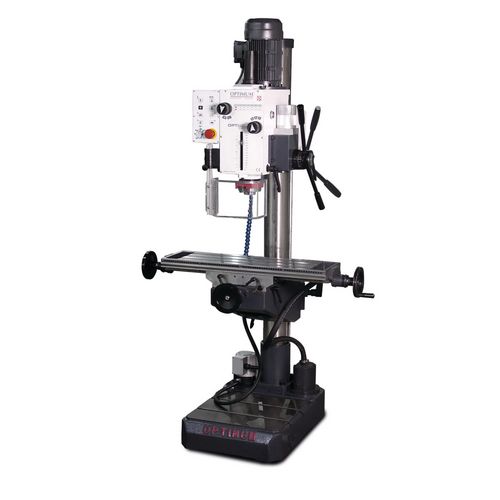

OPTIdrill DH 40CTP
The versatile machines for milling and drilling. DH 40CTP with automatic quill feed
3.719,00
EUR excl. Tax / pc(s).
4.425,61 EUR incl. 19% Tax / pc(s).
4.425,61 EUR incl. 19% Tax / pc(s).
Promotional price *
3.499,00 EUR excl. Tax / pc(s).4.163,81 EUR incl. 19% Tax / pc(s).
Prices are recommended retail prices. Retailer prices may vary.
* Promotional price valid until 28.02.2026 in Germany.
Art.-No. 3034352
Are you interested in this product?
Put a request
Find Trader
Productdetails
- Heavy, solid cast version
- Smooth running due to ground gearwheels running in an oil bath
- Large speed range from 95 - 3.200 min-1
- Dual-stage quality industrial electric motor
- Large dimensioned, solid cross table, precisely surface machined, adjustable via 3 handwheels, with integrated longitudinal dimension scale
- Adjustable end stops on cross table
- The height of the gear head and table can be adjusted
- Table guides can be precisely adjusted via adjustable wedge strips
- Massive, precisely surface-treated base plate; can be used as work surface for particularly high workpieces by swivelling the cross table away
- Right/left rotation
- Drill depth stop
- Thread cutting function
- Automatic quill feed
| Dimensions and weights | |
|---|---|
| Column diameter | 115 mm |
| Length approx. | 1060 mm |
| Width/depth approx. | 745 mm |
| Height approx. | 2090 mm |
| Weight approx. | 370 kg |
| Drilling performance | |
|---|---|
| Drilling performance steel (S235JR) | 32 mm |
| Continuous drilling performance steel (S235JR) | 25 mm |
| Thread tapping steel (S235JR) | M 16 |
| Max. shaft milling cutter size | 25 mm |
| Max. sensor head size | 76 mm |
| Drilling table | |
|---|---|
| Workspace length | 730 mm |
| Workspace width | 210 mm |
| T-groove size | 14 mm |
| T-groove number | 3 |
| T-groove spacing | 63 mm |
| Load bearing capacity | 50 kg |
| Max. distance spindle - drilling table | 600 mm |
| Electrical Data | |
|---|---|
| Drive motor output | 1.1 / 1.5 kW |
| Supply voltage | 400 V |
| Mains frequency | 50 Hz |
| Machine base | |
|---|---|
| Max. distance spindle - machine base | 1180 mm |
| Work area length | 495 mm |
| Work area width | 375 mm |
| Machine base T-groove size | 14 mm |
| Machine base T-groove number | 2 |
| Machine base T-groove spacing | 230 mm |
| Length | 495 mm |
| Width | 375 mm |
| Speed range | |
|---|---|
| Speed range | 95 3200 min¯¹ |
| Number of gears | 2 x 6 Steps |
| Spindle | |
|---|---|
| Quill stroke | 120 mm |
| Quill diameter | 75 mm |
| Spindle chuck | MT 4 |
| Reach | 280 mm |
| Drilling head rotation | 360 ° |
| Drilling head angle | 45 ° |
| Quill feed | automatic |
| Quill feed speed | 0.1 / 0.18 / 0.26 mm/rev |
| Height adjustment | 260 mm |
| Travel | |
|---|---|
| Drilling head travel (horizontal) | 480 mm |
| Y axis manual | 180 mm |
| Boom lift stroke (vertical) | 560 mm |
| Sicherheits- und Warnhinweise | |
| Safety and warning notices |
Unit: pc(s).
Packaging unit: 1
Packaging unit: 1
- Tooth ring drill chuck 1 - 13 mm / B 18
- T-slot nuts
- Reducing sleeve MK 4 - MK 3
- Holding mandrel MK 4 / B16
- Operating tool
