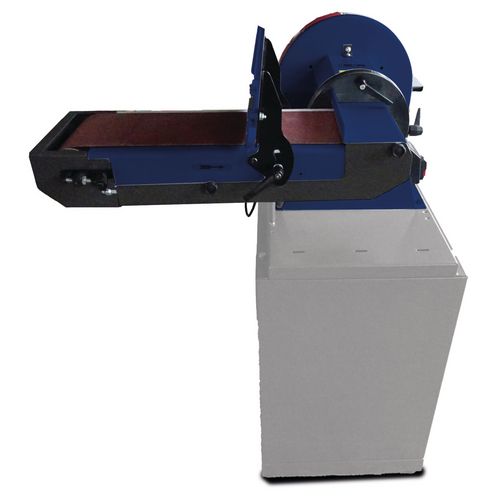

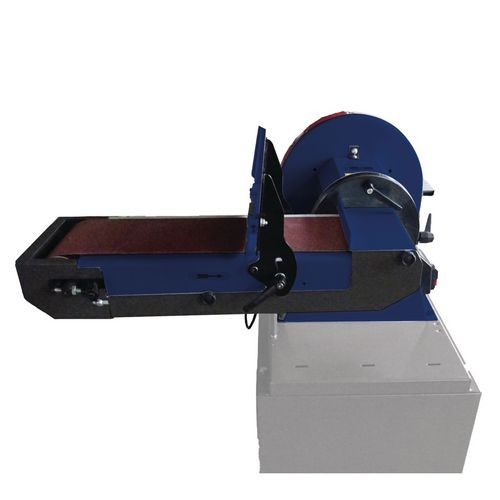

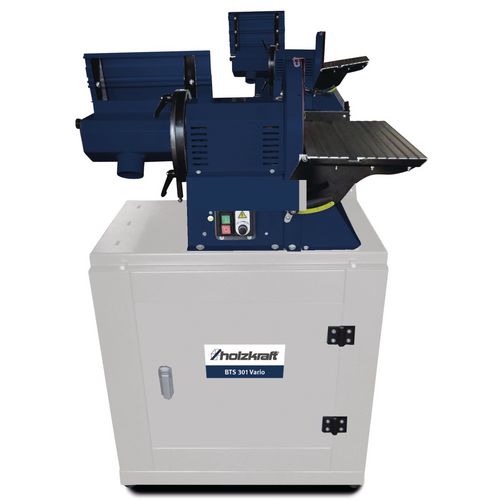

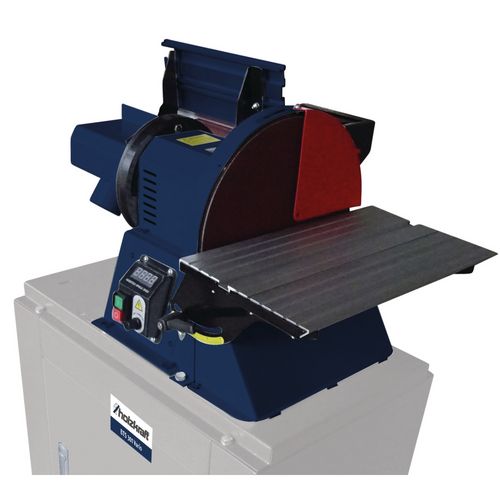

Belt and disc sander
BTS 301 Vario
with variable speed adjustment
999,00
EUR excl. Tax / pc(s).
1.188,81
EUR incl. 19% Tax / pc(s).
Prices are recommended retail prices. Retailer prices may vary.
Art.-No. 5903205
Are you interested in this product?
Put a request
Find Trader
Productdetails
- Swivel belt sanding unit - flexibly adjustable from 0° to 90° for versatile sanding work
- Infinitely variable speed control - ideal for processing a wide range of materials
- Quick change of sanding belts via quick-release system
- Simple belt run adjustment
- Graphite-coated sanding pad - ensures less wear and longer service life of the sanding belt
- Stable substructure for high stability and safety during operation
- Practical base cabinet with storage shelf
- Solid steel unit suspension
- Equipped with angle stop on the work table
- Two extraction connections for an external extraction system
| Dimensions and weights | |
|---|---|
| Length approx. | 780 mm |
| Width/depth approx. | 770 mm |
| Height approx. | 1050 mm |
| Weight approx. | 72 kg |
| Electrical Data | |
|---|---|
| Input power | 1.5 kW |
| Output power (motor power) | 1.1 kW |
| Input power | 1.5 kW |
| Supply voltage | 230 V |
| Mains frequency | 50 Hz |
| Extraction port | |
|---|---|
| Extraction port diameter | 63 mm |
| Sanding machine | |
|---|---|
| Sanding belt length | 1220 mm |
| Sanding belt width | 150 mm |
| Grinding disc diameter | 305 mm |
| Circumferential belt speed(s) | 0.4 – 0.8 m/s |
| Sanding belt length | 1220 mm |
| Sanding belt width | 150 mm |
| Circumferential belt speed(s) | 0.4 – 8.8 m/s |
| Speed range | 100 2300 min⁻¹ |
| Pivoting | 0 90 ° |
| Sanding disc diameter | 305 mm |
| Work top(s) | |
|---|---|
| Work table disc sanding machine length | 390 mm |
| Work table disc sanding machine width | 230 mm |
| Work table Disc sanding unit Swivel | -10 – 45 ° |
| Work table belt sanding machine length | 316 mm |
| Work table belt sanding machine width | 230 mm |
| Work table Belt sanding unit Swivel | -5 – 50 ° |
| VPE | 1 |
Unit: pc(s).
Packaging unit: 1
Packaging unit: 1
