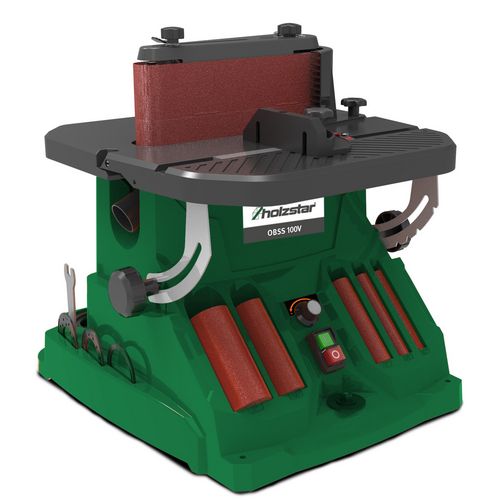

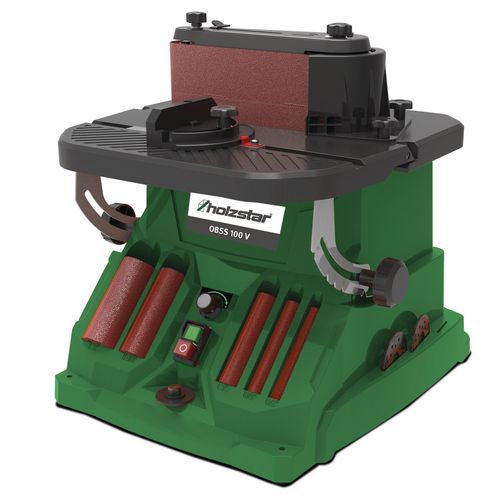

Oscillating spindle and belt sander
OBSS 100 V
with variable speed adjustment for sanding round edges, recesses or cut-outs
245,00
EUR excl. Tax / pc(s).
291,55
EUR incl. 19% Tax / pc(s).
Prices are recommended retail prices. Retailer prices may vary.
Art.-No. 5903510
Are you interested in this product?
Put a request
Find Trader
Productdetails
- Powerful 300 watt motor - For powerful, reliable work even with demanding materials
- Variable speed adjustment for processing a wide range of materials
- Compact and lightweight design - Easy to transport, convenient to store - ideal for the workshop and on the go
- Maximum precision and stability, even with larger workpieces, thanks to large and solid cast iron table
- Swivel work table infinitely adjustable from 0° to 45° - fixed angle steps at 0° / 15°/ 22.5°/ 30° /45°)
- Easy sanding belt change thanks to quick-release system
- Safe and clean working thanks to integrated suction nozzle for connecting an external suction unit
- Practical storage option for accessories and assembly tools
- Powerful 450 watt motor
- Variable speed adjustment for processing a wide range of materials
- Compact and lightweight design
- Swivel work table infinitely adjustable from 0° to 45° - fixed angle settings at 0° / 15° / 22.5° / 30° / 45°)
- Safe and clean working thanks to integrated extraction nozzle for connecting an external extraction unit
| Dimensions and weights | |
|---|---|
| Length approx. | 470 mm |
| Width/depth approx. | 440 mm |
| Height approx. | 500 mm |
| Weight approx. | 12.5 kg |
| Electrical Data | |
|---|---|
| Output power (motor power) | 0.3 kW |
| Input power | 0.45 kW |
| Supply voltage | 230 V |
| Mains frequency | 50 Hz |
| Extraction port | |
|---|---|
| Number of extraction ports | 1 |
| Extraction port diameter | 39 mm |
| Noise emission | |
|---|---|
| Sound power level Lw (idling without extraction unit) | 88.2 dB(A) |
| Sanding machine | |
|---|---|
| Sanding belt length | 610 mm |
| Sanding belt width | 100 mm |
| Circumferential belt speed(s) | 4 – 7.2 m/s |
| Speed range | 1000 1800 min⁻¹ |
| Sanding surface length | 210 mm |
| Sanding surface width | 100 mmm |
| Max. sanding height | 90 mm |
| Sanding sleeves diameter | 13, 19, 26, 38, 51 mm |
| Sliding sleeves Length | 115 mm |
| Spindle diameter | 12.7 mm |
| Oscillation stroke | 16 mm |
| Oscillation range | 29 52 min¯¹ |
| Work top(s) | |
|---|---|
| Work table length | 400 mm |
| Work table width | 407 mm |
| Pivoting | 45 ° |
| VPE | 1 |
Unit: pc(s).
Packaging unit: 1
Packaging unit: 1
- 5 sanding sleeves K80, Ø 13 / 19 / 26 / 38 / 51 mm
- 4 rubberized sanding rollers, length 115 mm, Ø 19 / 26 / 38 / 51 mm
- 5 table inserts Ø 13 / 19 / 26 / 38 / 51 mm
- 3 spindle disks Ø 16 / 24 / 44 mm
- Cover for sanding belt attachment
- Mitre fence
- Assembly tool
- Sanding belt 100x610 K80
