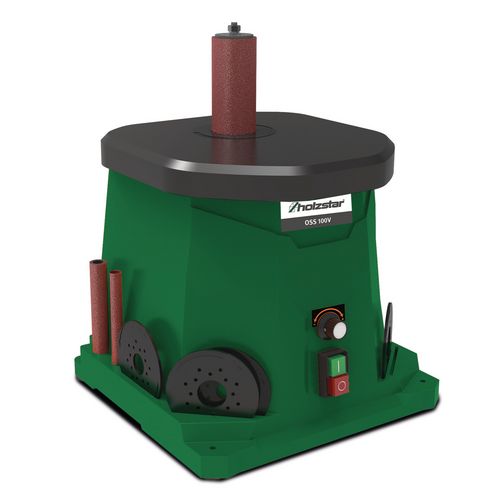

    Oscillating spindle grinder

    OSS 100 V

    with variable speed adjustment for sanding round edges, recesses or cut-outs

    185,00 EUR excl. Tax / pc(s).
    220,15 EUR incl. 19% Tax / pc(s).

    Prices are recommended retail prices. Retailer prices may vary.

    Sicherheits- und Warnhinweise

    Safety and warning notices

    Art.-No. 5903505

    Are you interested in this product?
  • Put a request
  • Find Trader

    • Productdetails

    • Powerful 300 watt motor - For powerful, reliable work even with demanding materials
    • Variable speed adjustment for processing a wide range of materials
    • Compact & lightweight design - Easy to transport, convenient to store - ideal for the workshop and on the go
    • Maximum precision and stability, even with larger workpieces, thanks to large and solid cast iron table
    • Safe and clean working thanks to integrated extraction nozzle for connecting an external extraction unit
    • Practical storage option for accessories and assembly tools



    • Powerful 450 watt motor
    • Variable speed adjustment for processing a wide range of materials
    • Compact & lightweight design



    Data sheets
    Sicherheits- und Warnhinweise
    Safety and warning notices
    Dimensions and weights
    Length approx.400 mm
    Width/depth approx.365 mm
    Height approx.440 mm
    Weight approx.9 kg
    Electrical Data
    Output power (motor power)0.3 kW
    Input power0.45 kW
    Supply voltage230 V
    Mains frequency50 Hz
    Extraction port
    Number of extraction ports1
    Extraction port diameter39 mm
    Noise emission
    Sound power level Lw (idling without extraction unit)88.3 dB(A)
    Sanding machine
    Speed range1000 18000 min⁻¹
    Max. sanding height90 mm
    Sanding sleeves diameter13, 19, 26, 38, 51, 76 mm
    Sliding sleeves Length115 mm
    Spindle diameter12.7 mm
    Oscillation stroke16 mm
    Oscillation range29 52 min¯¹
    Work top(s)
    Work table length320 320
    Work table width300 mm
    VPE1
    Unit: pc(s).
    Packaging unit: 1

    • 6 sanding sleeves K80, Ø 13 / 19 / 26 / 38 / 51 / 76 mm
    • 5 rubberized sanding rollers, length 115 mm, Ø 19 / 26 / 38 / 51 / 76 mm
    • 6 table inserts, Ø 13 / 19 / 26 / 38 / 51 / 76 mm
    • 3 spindle disks, Ø 16 / 24 / 44 mm
    • Assembly tool
