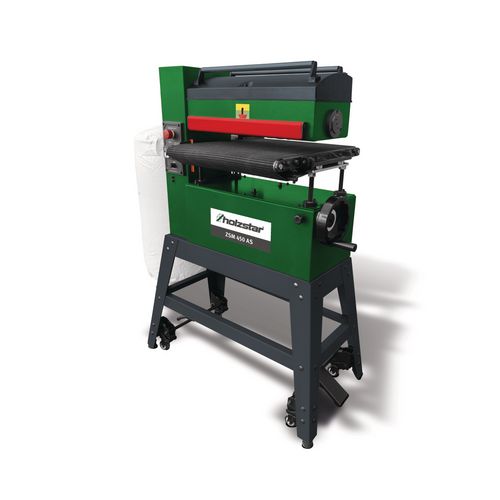

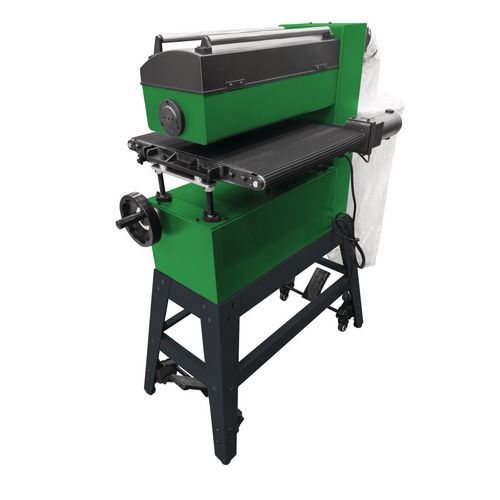

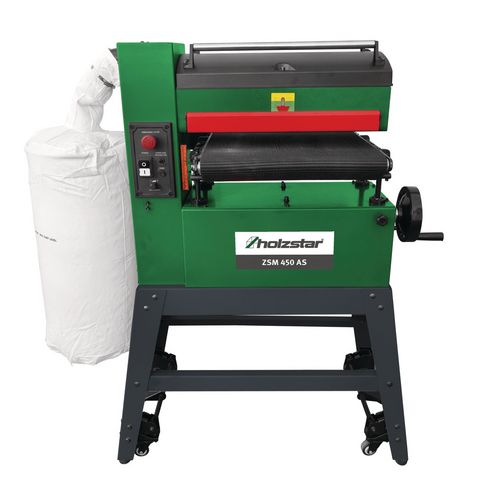

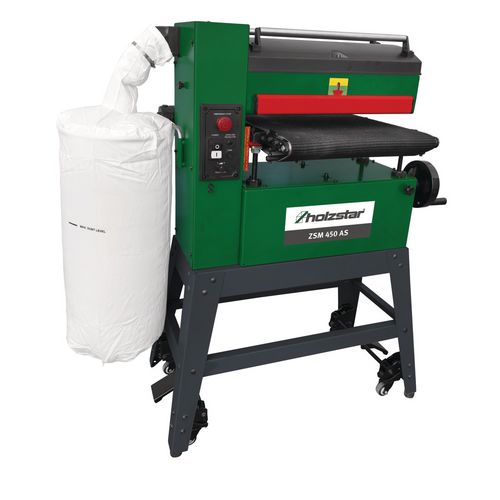

    Cylindrical sanding machine

    ZSM 450 AS

    Mobile cylindrical grinding machine with variable speed adjustment

    1.459,00 EUR excl. Tax / pc(s).
    1.736,21 EUR incl. 19% Tax / pc(s).

    Prices are recommended retail prices. Retailer prices may vary.

    Sicherheits- und Warnhinweise

    Safety and warning notices

    Art.-No. 5903450

    Are you interested in this product?
  • Put a request
  • Find Trader

    • Productdetails

    • Infinitely adjustable speed of the feed carpet for perfect sanding results with a wide range of materials
    • Open design on one side - also allows sanding of wider workpieces
    • Practical rollers on the top of the machine serve as a clipboard and facilitate the handling of workpieces

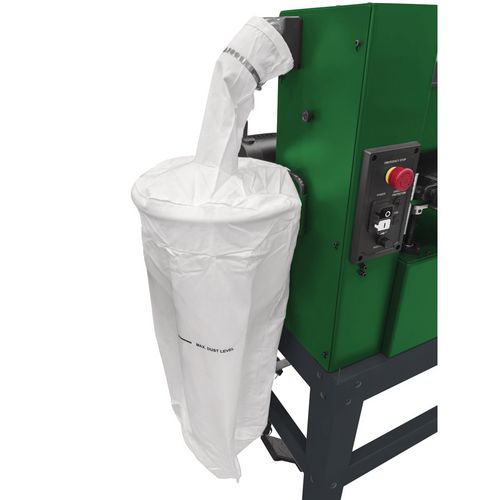

    • Integrated dust extraction for dust-free work
    • Precise height adjustment and clamping via handwheel
    • Mobile base with parking brake for easy maneuvering in the workshop



    • Infinitely adjustable feed speed for perfect sanding results on various materials
    • Open design on one side for sanding even wider workpieces
    • Integrated dust extraction for dust-free work
    • Precise height adjustment and clamping via handwheel
    Data sheets
    Sicherheits- und Warnhinweise
    Safety and warning notices
    Dimensions and weights
    Length approx.560 mm
    Width/depth approx.1175 mm
    Height approx.1240 mm
    Weight approx.119 kg
    Electrical Data
    Output power (motor power)1.3 kW
    Input power1.8 kW
    Feed motor output0.08 kW
    Supply voltage230 V
    Mains frequency50 Hz
    Extraction port
    Extraction port diameter75 mm
    Feed unit
    Feed speed0.5 – 4 m/min
    Belt conveyor length1120 mm
    Belt conveyor width450 mm
    Belt conveyor speed controlstepless
    Sanding machine
    Sanding belt length2115 mm
    Sanding belt width76 mm
    Max. sanding width457 mm
    Grinding width min.25 mm
    Max. sanding height115 mm
    Work top(s)
    Work table length465 mm
    Work table width460 mm
    Workpiece
    Min. height3 mm
    Max. height115 mm
    VPE1
    Unit: pc(s).
    Packaging unit: 1

    • Substructure with drive unit
    • 1x sanding belt 2115x76mm K 150
    • filter bag



    Suction✔
