    Productimage for for breadboard Ø 20 mm
    Brandimage to Product for breadboard Ø 20 mm

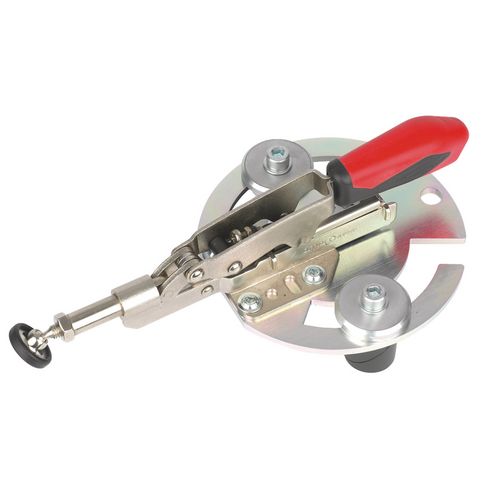

    Horizontal clamp adapter plate with clamping bolts

    for breadboard Ø 20 mm

    129,00 EUR excl. Tax / pc(s).
    153,51 EUR incl. 19% Tax / pc(s).

    Prices are recommended retail prices. Retailer prices may vary.

    Art.-No. 6112013

    Are you interested in this product?
  • Put a request
  • Find Trader

    • Productdetails

    • Horizontal clamp in set with one round adapter plate and two clamping bolts for fast and flexible fixing in 20 mm holes
    • Stepless compensation function 13 mm for workpieces with different clamping widths
    • Maximum stroke compensation 35 mm
    • Clamping bolt stainless steel Ø20mm with Allen screw for fixing in the hole grid
    • Round adapter plate with slotted hole, thus extremely flexible positioning possible



    Clamp length253 mm
    Clamp pressure directionhorizontal
    Clamp holding force3,0 kN
    Stroke compensation max.35 mm
    Stroke compensation automatic13 mm
    Clamp fixationPerforated grid Ø20 mm
    Clamping bolt diameter20 mm
    Adapter plate diameter140 mm
    VPE1
    Unit: pc(s).
    Packaging unit: 1

    • 1 horizontal clamp
    • 1 round adapter plate
    • 2 clamping bolts Ø20 mm with washer
