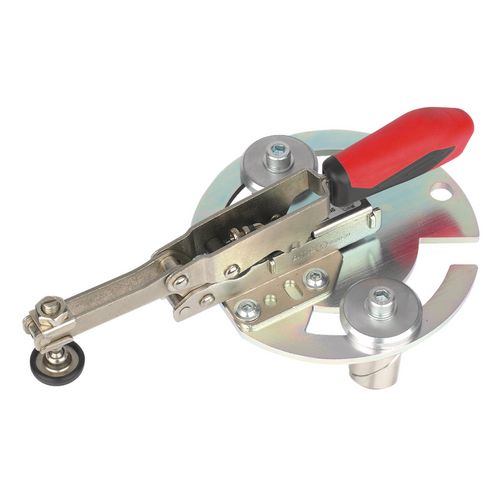

    Vertical clamp on adapter plate with clamping bolt

    for breadboard Ø 20 mm

    132,00 EUR excl. Tax / pc(s).
    157,08 EUR incl. 19% Tax / pc(s).

    Prices are recommended retail prices. Retailer prices may vary.

    Art.-No. 6112014

    Are you interested in this product?
  • Put a request
  • Find Trader

    • Productdetails

    • Vertical clamp in set with one round adapter plate and two clamping bolts
    • With infinitely variable compensation function 35 mm for workpieces with different material thicknesses
    • Maximum height compensation 40 mm
    • Clamping bolt stainless steel Ø20mm with Allen screw for fixing in the hole grid
    • Round adapter plate with slotted hole, thus extremely flexible positioning possible



    Clamp length244 mm
    Clamp pressure directionperpendicular
    Clamp holding force3,0 kN
    Height compensation max.40 mm
    Stroke compensation automatic35 mm
    Clamp fixationPerforated grid Ø20 mm
    Clamping bolt diameter20 mm
    Adapter plate diameter140 mm
    VPE1
    Unit: pc(s).
    Packaging unit: 1

    • 1 vertical clamp
    • 1 round adapter plate
    • 2 clamping bolts Ø20 mm with washer
