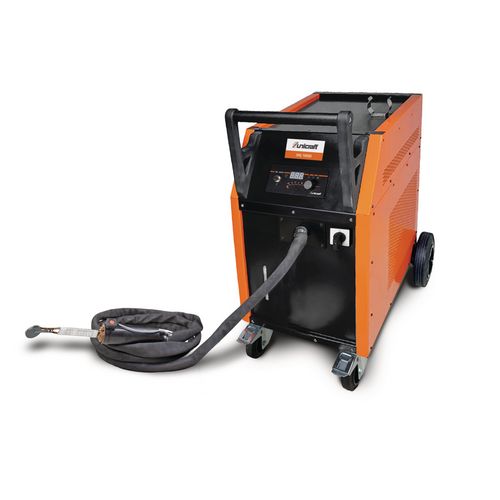

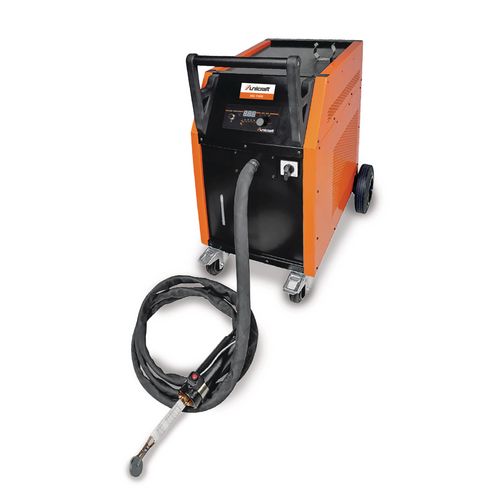

Induction heater
IHG 11000
Powerful and mobile device with chassis
6.999,00
EUR excl. Tax / pc(s).
8.328,81 EUR incl. 19% Tax / pc(s).
8.328,81 EUR incl. 19% Tax / pc(s).
Promotional price *
6.199,00 EUR excl. Tax / pc(s).7.376,81 EUR incl. 19% Tax / pc(s).
Prices are recommended retail prices. Retailer prices may vary.
* Promotional price valid until 28.02.2026 in Germany.
Art.-No. 6420100
Are you interested in this product?
Put a request
Find Trader
Productdetails
Application areas
- Ideal for every workshop - for use in the automotive, railway and aviation industries, shipbuilding and industry in general, metal processing, maintenance, weldingconstruction, repair workshops
- For heating before hardening, straightening, bending or forging of tubes, round steel and profiles

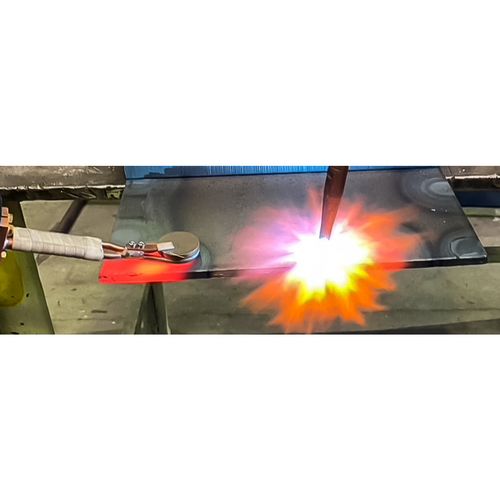

- Local heating of parts for soldering, pressing, bending and gluing

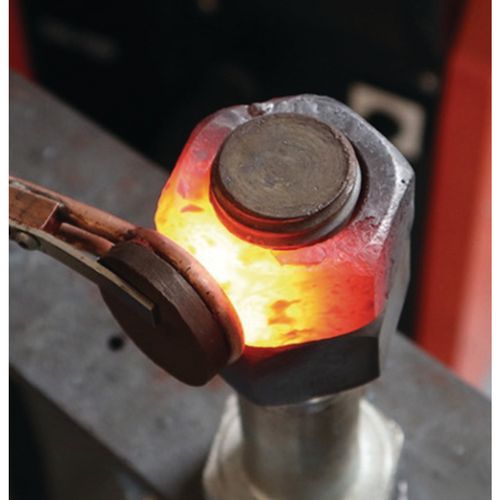

- Loosening of smaller cladding parts and seized and rusted parts such as bolts, nuts, screws, bearings, gearsthe or similar
Your advantages

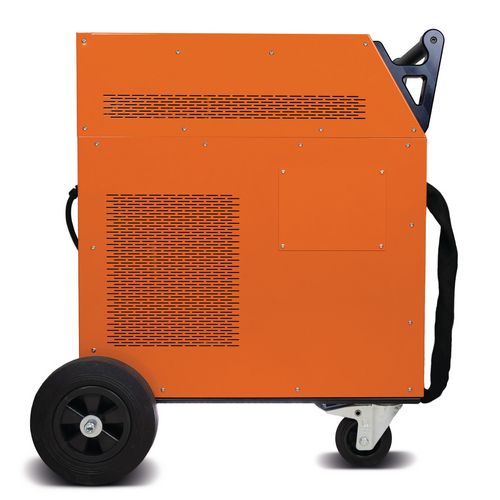

- Mobile equipmentt with chassis and integrated water cooling
- alternative for heating with flame for oxyfuel
- power 12kVA - high load factor
- Very quiet operation
- Flexible and simple operation
Extensive equipment
- li> Induction coils water-cooled
- Continuously variable power control from 10 to 100 percent
- Timer for high repeatability

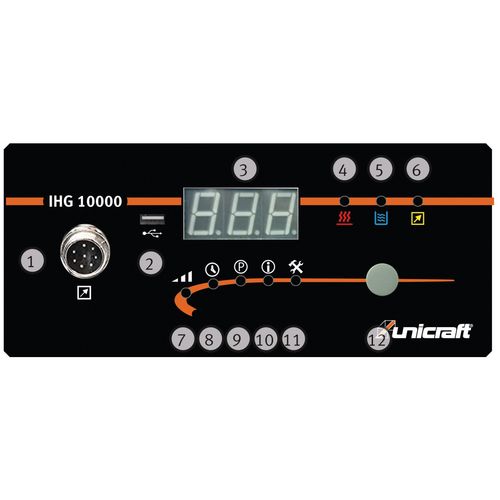

- Clear display for showing and setting the parameters
- operating modes constant power CP and constant magnetic field CF selectable
You will receive the 3-year Stürmer warranty for this item when you register online.
- For heating before hardening, straightening, bending or forging of tubes, round steel and profiles
- Local heating of parts for soldering, pressing, bending and bonding
- Integrated water coolinghlung
- Cost-effective, safe and clean alternative to heating with a burner
- Infinitely variable output control from 10 to 100 percent
- Timer for high repeatability
| Output frequency | 18 – 45 kHz |
| Degree of protection | IP 21 |
| Nut size | >M45 |
| Material thickness max. | 40 mm |
| Coolant volume | 10 l |
| VPE | 1 |
| Dimensions and weights | |
|---|---|
| Induction burner cable length | 4 m |
| Connection cable length | 5 m |
| Weight of device | 58 kg |
| Explanation about Weight | with accessory |
| Length approx. | 540 mm |
| Width/depth approx. | 810 mm |
| Height approx. | 710 mm |
| Weight approx. | 68 kg |
| Electrical Data | |
|---|---|
| Fuse protection | 16 A |
| Absorption capacity | 11 kW |
| Supply voltage | 400 V |
| Mains frequency | 50/60 Hz |
Unit: pc(s).
Packaging unit: 1
Packaging unit: 1
- Handle for coil with 4m cable
- Focusing coil round 32 mm
- 10 l cooling circuit filling
| Inductor cooling | coolant |
| Stepless power control | yes |
| Timer | yes |
