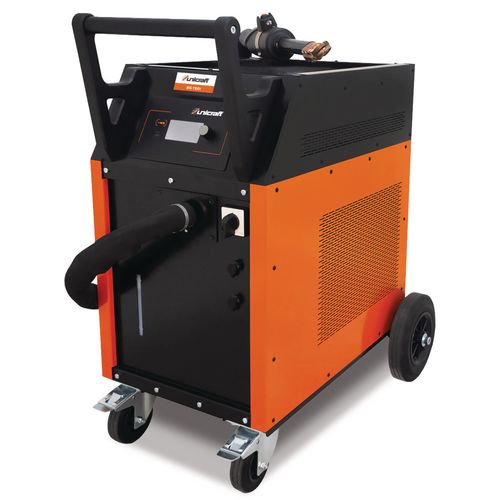

    Induction heater

    IHG 11001

    Mobile induction heater for demanding repair applications in workshops, garages and industry

    5.935,00 EUR excl. Tax / pc(s).
    7.062,65 EUR incl. 19% Tax / pc(s).
    Promotional price *
    5.299,00 EUR excl. Tax / pc(s).
    6.305,81 EUR incl. 19% Tax / pc(s).

    Prices are recommended retail prices. Retailer prices may vary.
    * Promotional price valid until 31.08.2026 in Germany.

    Art.-No. 6420110

    Are you interested in this product?
  • Put a request
  • Find Trader

    • Productdetails

    • Powerful mobile induction heater for demanding repair applications in workshops, garages and industry
    • Equipped with high-power liquid-cooled inductors and user-friendly controls
    • Suitable for larger applications in cars, trucks, agricultural machinery and other heavy equipment
    • Suitable for straightening chassis of heavy vehicles, trailers and other equipment, straightening shafts, preheating axles, bolts, arms
    • For removing bearings, bushes and pressed parts
    • Liquid-cooled inductors for long-lasting and stable performance
    • High versatility thanks to interchangeable focusing and ring inductors
    • Fast heating of screws, nuts and other metal connections without having to dismantle surrounding parts
    • Continuous power control (20-100 %) and timer setting possible
    • Mobile thanks to castors with parking brake
    • Display with parameter overview LED lighting and USB interface for updates
    • Inductor can be changed quickly



    • Equipped with high performance liquid-cooled inductors and user-friendly controls
    • Suitable for larger applications in cars, trucks, agricultural machinery and other heavy equipment
    • Suitable for straightening chassis of heavy vehicles, trailers and other equipment, straightening shafts, preheating axles, bolts, arms



    Output frequency18 35 kHz
    Degree of protectionIP 21
    Nut size>M45
    Material thickness max.40 mm
    Coolant volume10 l
    VPE1
    Dimensions and weights
    Induction burner cable length4 m
    Length approx.540 mm
    Width/depth approx.815 mm
    Height approx.710 mm
    Weight approx.58 kg
    Electrical Data
    Fuse protection16 A
    Absorption capacity11 kW
    Supply voltage400 V
    Mains frequency50 Hz
    Unit: pc(s).
    Packaging unit: 1

    • Focusing coil, round, 32 mm (item no. 6430201)



    Inductor coolingcoolant
    Stepless power controlYes
    TimerYes
    Connection plugCEE 400V 32A
    Connection cable length4 m
