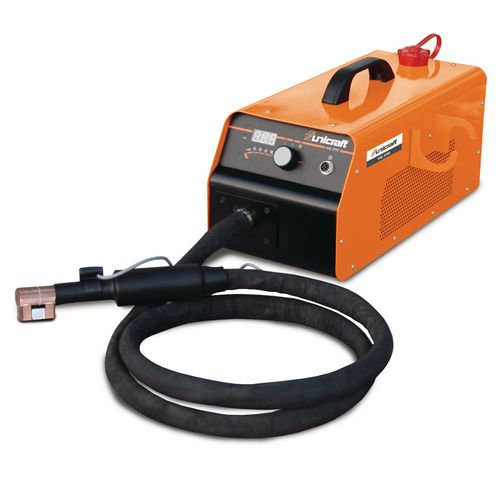

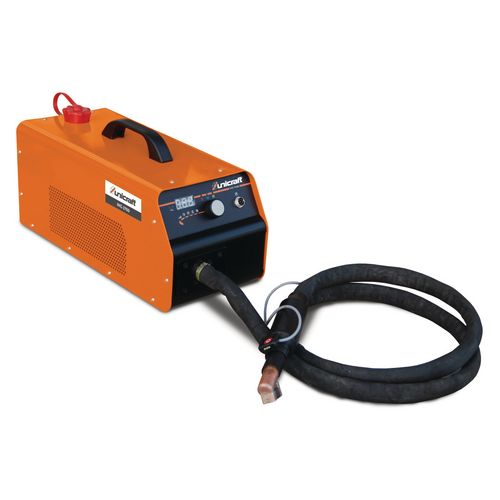

Induction heater
IHG 3700
For heating and loosening of stuck and rusted parts
3.199,00
EUR excl. Tax / pc(s).
3.806,81 EUR incl. 19% Tax / pc(s).
3.806,81 EUR incl. 19% Tax / pc(s).
Promotional price *
2.699,00 EUR excl. Tax / pc(s).3.211,81 EUR incl. 19% Tax / pc(s).
Prices are recommended retail prices. Retailer prices may vary.
* Promotional price valid until 28.02.2026 in Germany.
Art.-No. 6400035
Are you interested in this product?
Put a request
Find Trader
Productdetails
Powerful and easy to use
- Control with up to ten parameters, eg setting the maximum temperature or duration of the heating process
- High repeat accuracy by setting the desired parameters
- Cheap, safe and clean alternative to heating with welding torch
Numerous applications
- Attachments exchangeable for many applications
- Detach smaller trim parts, stuck and rusted parts such as bolts, nuts, screws, bearings, gears or the like
- Local heating of parts for soldering, pressing, bending or gluing
- Melting of low melting point materials
Practical details
- Integrated water cooling, thanks to water level indicator easy to fill
- Easy software updates via USB port
- Easy to transport due to its compact design and low weight
You will receive the 3-year Stürmer warranty for this item when you register online.
- Easy handling with high repeat accuracy
- Quick release of screws and nuts
- Heating parts for pressing, bending or gluing
| Output frequency | 18 60 kHz |
| Degree of protection | IP 22 |
| Nut size | M6 – M27 |
| Material thickness max. | 8 mm |
| Coolant volume | 2.5 l |
| VPE | 1 |
| Dimensions and weights | |
|---|---|
| Induction burner cable length | 2 m |
| Connection cable length | 3 m |
| Weight of device | 9 kg |
| Explanation about Weight | with accessory |
| Length approx. | 440 mm |
| Width/depth approx. | 240 mm |
| Height approx. | 200 mm |
| Weight approx. | 13.5 kg |
| Electrical Data | |
|---|---|
| Fuse protection | 16 A |
| Absorption capacity | 3.7 kW |
| Supply voltage | 230 V |
| Mains frequency | 50 Hz |
Unit: pc(s).
Packaging unit: 1
Packaging unit: 1
- handle for coil with 2 m cable
- focusing coil sidewards
- cooling circuit filling 2.5 l
| Inductor cooling | coolant |
| Stepless power control | yes |
| Timer | yes |
