| Air requirement average, approx. | 200 – 350 l/min |
| Working pressure | 4.1 – 8.0 bar |
| Abrasive grain size recommended | 0.2 – 0.3 mm |
| Max. abrasive grain size | 0.125 – 0.45 mm |
| Max. load of grid | 120 kg |
| Max. weight of blast media | 50 kg |

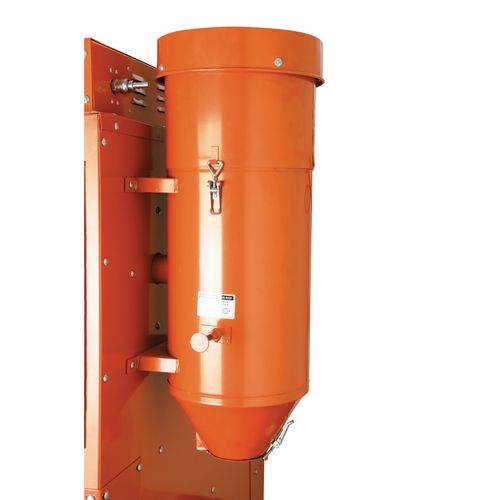

| Extraction performance | 2.5 m³/h |
| Extraction unit negative pressure | 8.5 kPa |
| Extraction unit volume flow | 156 m³/h |
| VPE | 1 |
Sandblasters

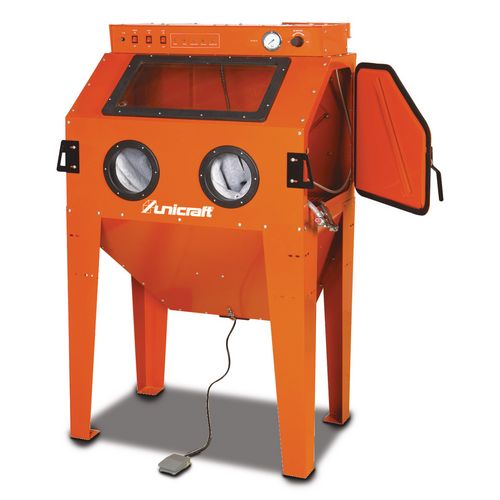

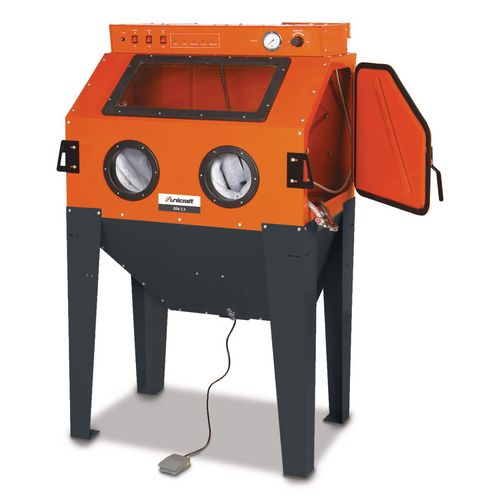

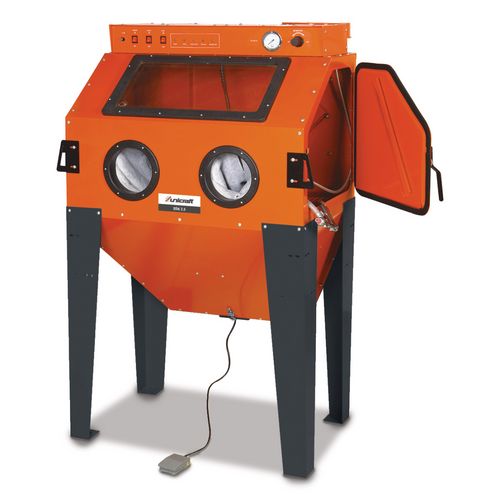

SSK 2.5
For clean blasting without pollution of the working environment
1.069,00
EUR excl. Tax / pc(s).
1.272,11
EUR incl. 19% Tax / pc(s).
Prices are recommended retail prices. Retailer prices may vary.
Art.-No. 6204003
Are you interested in this product?
Put a request
Find Trader
Productdetails
- Suitable for various blasting materials, eg quartz, glass ball, plastic ball, nut cases, etc.
- Ideal for cleaning, rust removal or paint removal of metal parts of all kinds, eg engine parts, fittings, signs, housings, rims, hinges
- High-quality work gloves made of latex are firmly attached to the housing
- Optimum vision and work safety during workpiece machining due to the lens with glued-on protective foil
- Dust-free work due to circumferential seals on cover and door frame

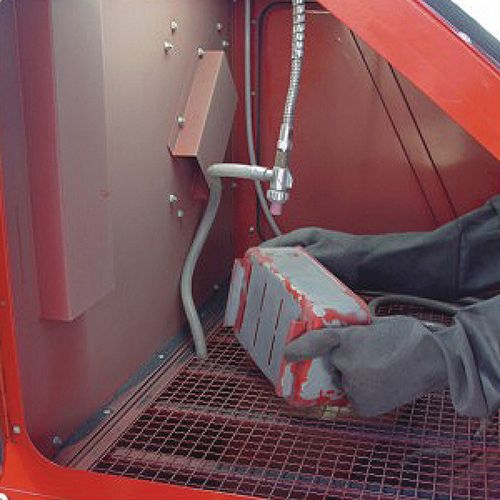

- Stable storage grid allows laying of workpieces in the cabin interior
- With drain opening for changing the blasting material
- Suction pipe for the blasting material attached to the bottom of the collecting container
- With compressed air connection on the outside
- Glass bead blasting, corundum blasting, silicon carbide, plastic blasting, etc. can be used
Room amenities:
- A large side door for loading and unloading
- 2 exhaust air openings (1 exhaust air connection ø 92 mm and 1 exhaust air outlet ø 64 mm) for connecting an extraction system
- 12 volt fluorescent tube with 230 volt power supply and external switch
| Dimensions and weights | |
|---|---|
| Cabin volume | 310 l |
| Cabin interior length | 945 mm |
| Cabin interior width | 605 mm |
| Cabin interior height | 605 mm |
| Diameter of hand hole | 195 mm |
| Length approx. | 960 mm |
| Width/depth approx. | 900 mm |
| Height approx. | 1640 mm |
| Weight approx. | 90 kg |
| Electrical Data | |
|---|---|
| Extraction absorbed power | 1.2 kW |
| Side door (see drawing) | |
|---|---|
| A | 541 mm |
| B | 575 mm |
| C | 316 mm |
| D | 265 mm |
Unit: pc(s).
Packaging unit: 1
Packaging unit: 1
- High quality blasting gun with ceramic nozzle
- 4 ceramic nozzles (4/5/6/7 mm)
- 5 replacement foils for viewing windows
