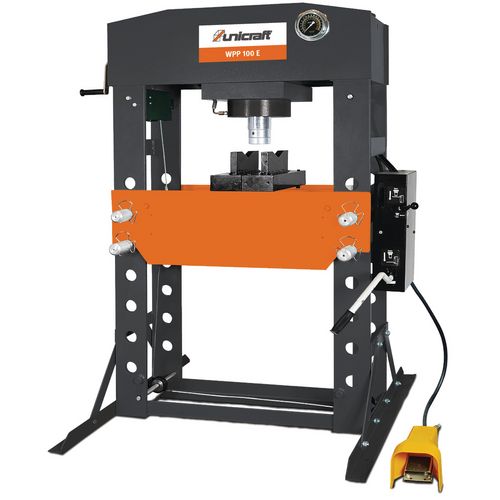

    Hydraulic workshop press

    WPP 100 E

    Robust press with conventional equipment

    4.699,00 EUR excl. Tax / pc(s).
    5.591,81 EUR incl. 19% Tax / pc(s).

    Prices are recommended retail prices. Retailer prices may vary.

    Art.-No. 6300101

    Are you interested in this product?
  • Put a request
  • Find Trader

    • Productdetails

    • Ideal for versatile use in the trades and for repairs in schools, training workshops, garages, workshops, agriculture, forestry and horticulture
    • Crimping cylinder with integrated return spring
    • Display of pressing pressure via pressure gauge
    • Quick and safe table height adjustment thanks to hand crank with cable pull and pin lock



    • Seven-stage height-adjustable press table with locking pin
    • Two-stage, fast hydraulic hand pump with high stroke frequency
    • Cylinder can be moved sideways
    • Piston feed optionally possible via hydraulic hand pump or pneumatic foot lever



    Pressure force100 t
    Piston stroke300 mm
    Piston travel254 mm
    Piston stroke per pumping operation footpedal5.85 mm
    Piston speed with foot pedal3.33 mm/s
    VPE1
    Dimensions and weights
    Width/depth of machine feet990 mm
    Frame depth268 mm
    Hole spacing for table height adjustment140 mm
    Clear height max.813 mm
    Clear height min.113 mm
    Clear width787 mm
    Diameter piston rod96 mm
    Length approx.1199 mm
    Width/depth approx.990 mm
    Height approx.1848 mm
    Weight approx.666 kg
    Hydraulic system
    Hydraulic oil tank capacity4.95 l
    Pneumatic connection
    Air consumption approx.200 l/min
    Pneumatic operating pressure from to7.5 8.5 bar
    Unit: pc(s).
    Packaging unit: 1
