| Pressure force | 200 t |
| Piston stroke | 350 mm |
| Piston travel | 352 mm |
| Press speed | 1.8 mm/ |
| VPE | 1 |

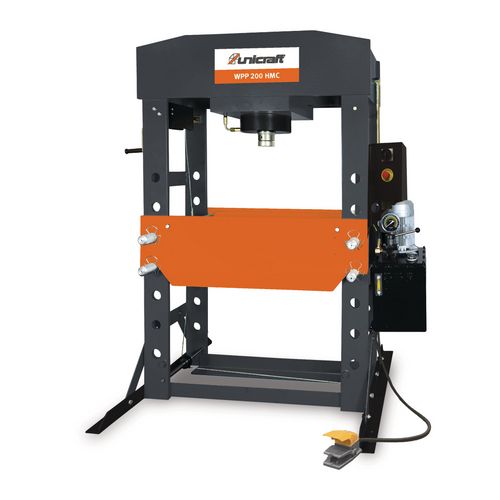

Electro-hydraulic workshop press
WPP 200 HMC
Heavy-duty design for demanding use
11.990,00
EUR excl. Tax / pc(s).
14.268,10
EUR incl. 19% Tax / pc(s).
Prices are recommended retail prices. Retailer prices may vary.
Art.-No. 6301200
Are you interested in this product?
Put a request
Find Trader
Productdetails
- Electro-hydraulic press with a pressing force of up to 200 t
- Sturdy welded construction

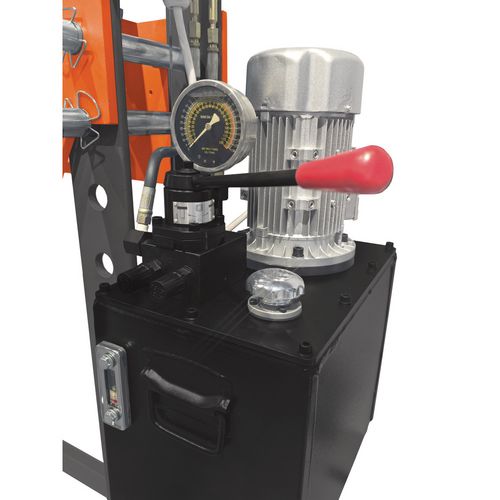

- Pressing pressure can be read via pressure gauge

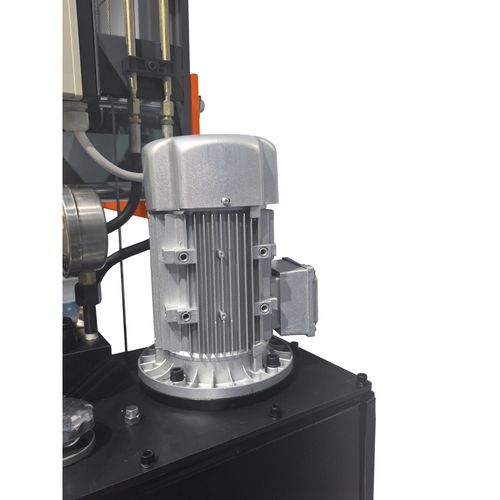

- Faster pressing processes than standard hydraulic presses thanks to integrated electric motor

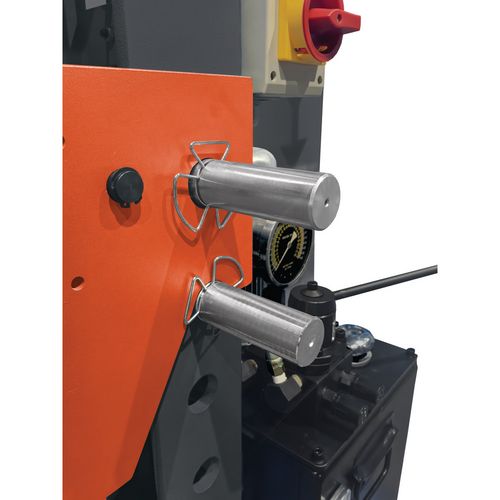

- Quick and safe table height adjustment thanks to hand crank with cable pull and bolt safety device
- For pressing out and pressing in bearings, bolts and bushings as well as for repair and assembly work, pressing work, load tests, weld sample tests and much more
- Faster pressing processes than standard hydraulic presses thanks to integrated electric motor
- Table height adjustment via hand crank with cable pull and bolt safety device
- For pressing out and pressing in bearings, bolts and bushings as well as for repair and assembly work, pressing work, load tests, weld sample tests and much more
| Dimensions and weights | |
|---|---|
| Width/depth of machine feet | 995 mm |
| Frame depth | 366 mm |
| Hole spacing for table height adjustment | 165 mm |
| Clear height max. | 918 mm |
| Clear height min. | 93 mm |
| Clear width | 1002 mm |
| Diameter piston rod | 140 mm |
| Length approx. | 1462 mm |
| Width/depth approx. | 995 mm |
| Height approx. | 2109 mm |
| Weight approx. | 1362 kg |
| Electrical Data | |
|---|---|
| Drive motor output | 1,5 kW |
| Supply voltage | 400 V |
| Mains frequency | 50 Hz |
| Hydraulic system | |
|---|---|
| Hydraulic oil tank capacity | 34 l |
Unit: pc(s).
Packaging unit: 1
Packaging unit: 1
