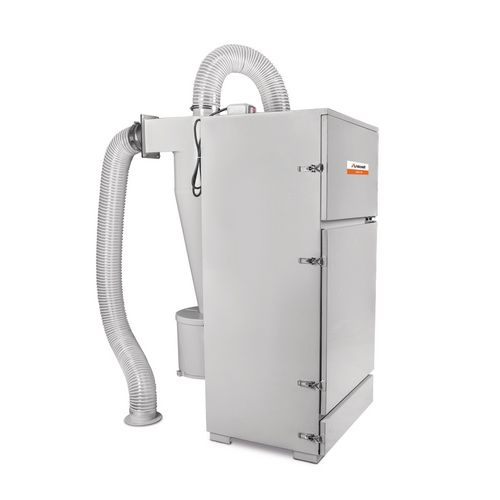

    Productimage for ZAA 34
    Brandimage to Product ZAA 34

    Cyclone extractor

    ZAA 34

    Highly efficient and powerful, with a two-stage separation system

    755,00 EUR excl. Tax / pc(s).
    898,45 EUR incl. 19% Tax / pc(s).
    Promotional price *
    629,00 EUR excl. Tax / pc(s).
    748,51 EUR incl. 19% Tax / pc(s).

    Prices are recommended retail prices. Retailer prices may vary.
    * Promotional price valid until 31.08.2024 in Germany.

    Art.-No. 6204090

    Are you interested in this product?
  • Put a request
  • Find Trader

    • Productdetails

    • Clean exhaust air by separating the dust in the cyclone separator and cartridge filter
    • Cyclone separator removes up to 95% dust from the suction air in the first step
    • Particles are collected in a drawer and can be quickly disposed of
    • Effective cartridge filter with a large filter area, easy to remove for cleaning or changing
    • Compact dimensions



    • Clean exhaust air by separating the dust in the cyclone separator and cartridge filter
    • Particles are collected in a drawer and can be quickly disposed of
    • Effective cartridge filter with a large filter area, easy to remove for cleaning or changing



    Dimensions and weights
    Extraction duct inlet outside nominal width101 mm
    Extraction duct outlet outside nominal width101 mm
    Length approx.520 mm
    Width/depth approx.880 mm
    Height approx.1370 mm
    Weight approx.50 kg
    Electrical Data
    Motor input0.55 kW
    Supply voltage230 V
    Mains frequency50 Hz
    Filter
    Filter surface area4.42 m²
    Noise emission
    Max. sound pressure level75 dB(A)
    Volume flow
    Rated volume flow900 m³/h
    VPE1
    Unit: pc(s).
    Packaging unit: 1

    • Filter cartridge
    • Hose Ø 100 mm length 750 mm
    • Hose Ø 100 mm length 1500 mm
