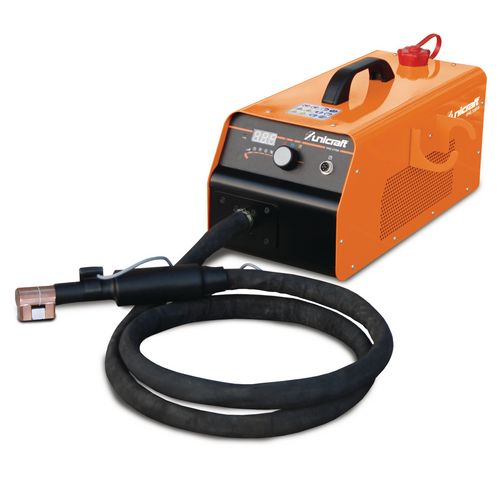

    Induction heater

    IHG 3500

    For heating and loosening of stuck and rusted parts

    3.199,00 EUR excl. Tax / pc(s).
    3.806,81 EUR incl. 19% Tax / pc(s).
    Promotional price *
    2.699,00 EUR excl. Tax / pc(s).
    3.211,81 EUR incl. 19% Tax / pc(s).

    Prices are recommended retail prices. Retailer prices may vary.
    * Promotional price valid until 31.08.2025 in Germany.

    Sicherheits- und Warnhinweise

    Safety and warning notices

    Art.-No. 6400035

    Are you interested in this product?
  • Put a request
  • Find Trader

    • Productdetails



    Powerful and easy to use

    • Control with up to ten parameters, eg setting the maximum temperature or duration of the heating process
    • High repeat accuracy by setting the desired parameters
    • Cheap, safe and clean alternative to heating with welding torch

    Numerous applications

    • Attachments exchangeable for many applications

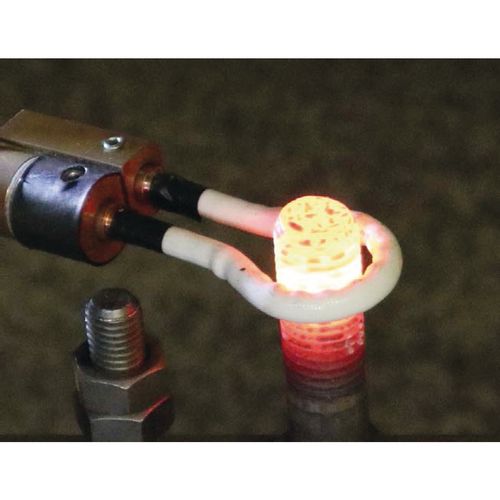

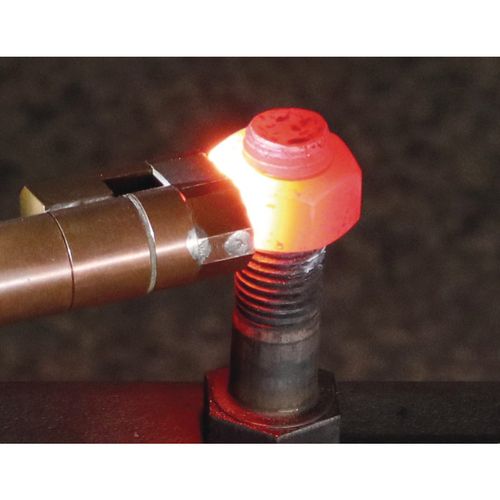

    • Detach smaller trim parts, stuck and rusted parts such as bolts, nuts, screws, bearings, gears or the like

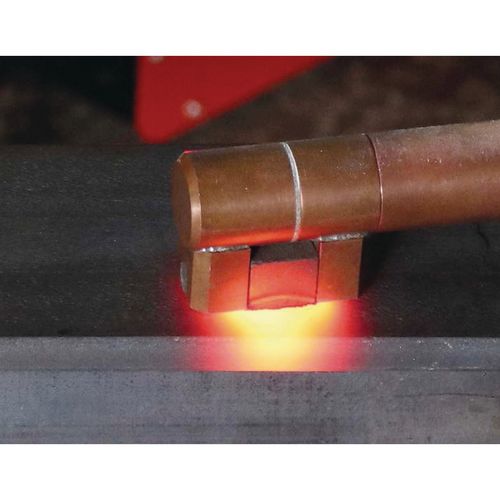

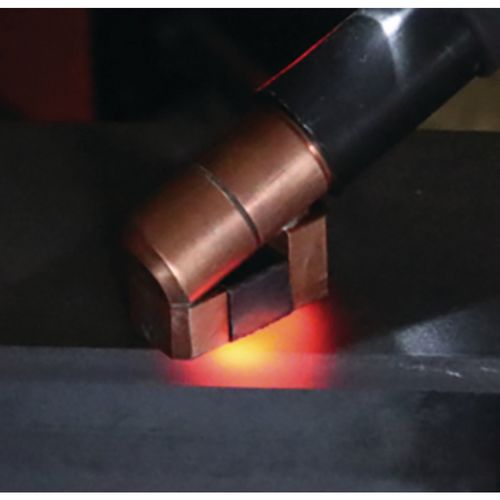

    • Local heating of parts for soldering, pressing, bending or gluing
    • Melting of low melting point materials

    Practical details

    • Integrated water cooling, thanks to water level indicator easy to fill
    • Easy software updates via USB port
    • Easy to transport due to its compact design and low weight



    • Easy handling with high repeat accuracy

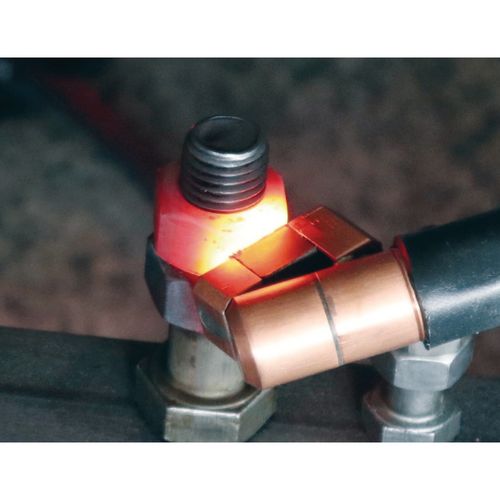

    • Quick release of screws and nuts
    • Heating parts for pressing, bending or gluing



    Data sheets
    Sicherheits- und Warnhinweise
    Safety and warning notices
    Power consumption3.5 kVA
    Output3.5 kW
    Output frequency18 – 60 kHz
    Degree of protectionIP22
    Coolant volume2.5 l
    VPE1
    Dimensions and weights
    Weight of device9 kg
    Explanation about Weightwith accessory
    Length approx.440 mm
    Width/depth approx.240 mm
    Height approx.200 mm
    Weight approx.13.5 kg
    Electrical Data
    Fuse protection16 A
    Supply voltage230 V
    Mains frequency50 Hz
    Unit: pc(s).
    Packaging unit: 1

    • handle for coil with 2 m cable
    • focusing coil sidewards
    • cooling circuit filling 2.5 l
