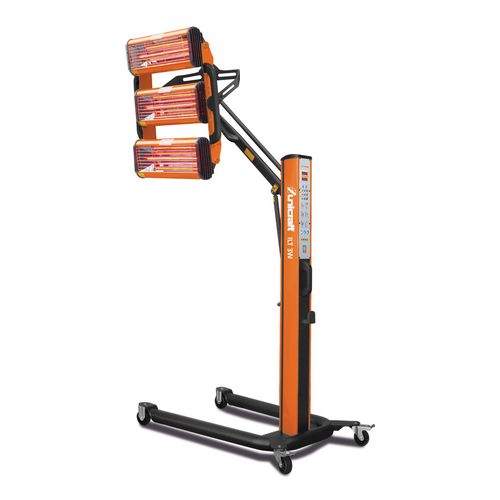

    Infrared paint dryer

    ILT 3W

    Sturdy stainless steel construction with hydraulic arm

    975,00 EUR excl. Tax / pc(s).
    1.160,25 EUR incl. 19% Tax / pc(s).
    Promotional price *
    839,00 EUR excl. Tax / pc(s).
    998,41 EUR incl. 19% Tax / pc(s).

    Prices are recommended retail prices. Retailer prices may vary.
    * Promotional price valid until 31.08.2025 in Germany.

    Sicherheits- und Warnhinweise

    Safety and warning notices

    Art.-No. 6205000

    Are you interested in this product?
  • Put a request
  • Find Trader

    • Productdetails

    • Sturdy stainless steel construction with hydraulic arm
    • High quality V Power 21 inch (50 cm) Quartz Halogen Shortwave Infrared Tube Lights
    • Dries the paint layer efficiently from the outside and inside out, thereby bubbles are avoided and saves time

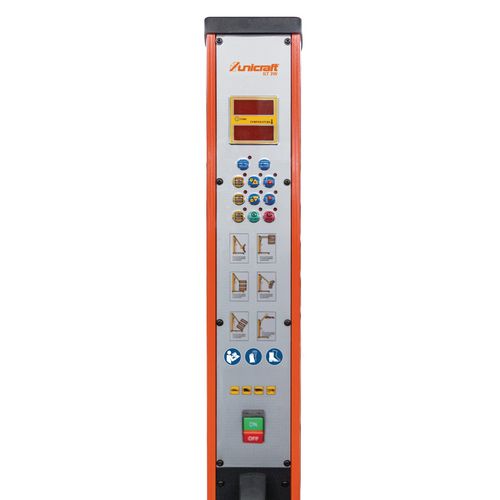

    • Fully automatic digital setting of power via LED display with timer
    • Electronic temperature setting from 40 - 100 ° C
    • Each of the three spotlights individually switchable
    • 300 degree swiveling and rotating lamp housing
    • Two adjustable drying phases:
      • PULSE: Interval operation for evaporation / predrying
      • ROUTINE: Continuous operation for hardening
    • Ball bearing rollers with parking brake



    Data sheets
    Sicherheits- und Warnhinweise
    Safety and warning notices
    Device data
    Drying area length1200 mm
    Drying area width1000 mm
    Temperature35 – 100 °C
    Timer0 – 99 min
    Dimensions and weights
    Length approx.1050 mm
    Width/depth approx.810 mm
    Height approx.1620 mm
    Weight approx.45 kg
    Electrical Data
    Degree of protectionIP21
    Protection classF
    Total rated value3 kW
    Mains supply cable length4.5 m
    Supply voltage230 V
    Mains frequency50/60 Hz
    Illuminant
    Output3.3 kW
    TypeShortwave infrared
    Number3 St
    Colour temperature2500 K
    VPE1
    Unit: pc(s).
    Packaging unit: 1
