Sandblasters

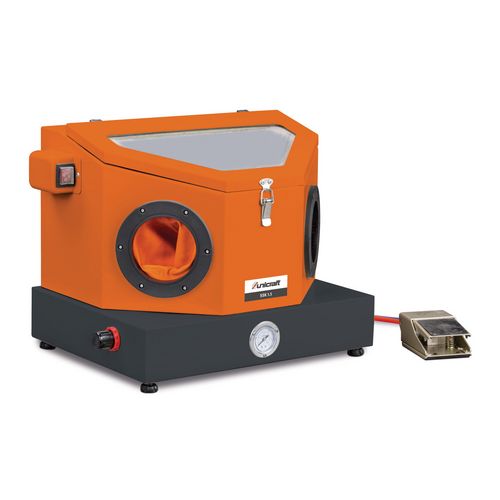

SSK 1.5
For clean blasting without pollution of the working environment
229,00
EUR excl. Tax / pc(s).
272,51
EUR incl. 19% Tax / pc(s).
Prices are recommended retail prices. Retailer prices may vary.
Art.-No. 6204010
Are you interested in this product?
Put a request
Find Trader
Productdetails
- Suitable for various blasting materials, eg quartz, glass ball, plastic ball, nut cases, etc.
- Ideal for paint removal or for cleaning and de-rusting metal parts of all kinds
- High-quality work gloves made of latex are firmly attached to the housing
- Lens with glued-on protective foil allows optimum visibility and safety during workpiece machining
- Dust-free work due to circumferential seals on cover and door frame

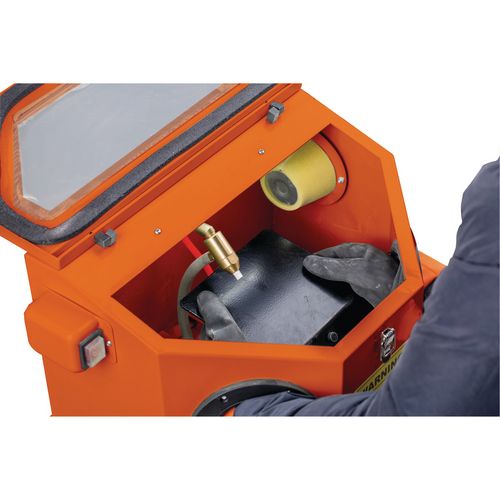

- Stable storage grid allows laying of workpieces in the cabin interior
- With opening for draining the blasting material
- Suction pipe for the blasting material attached to the bottom of the collecting container

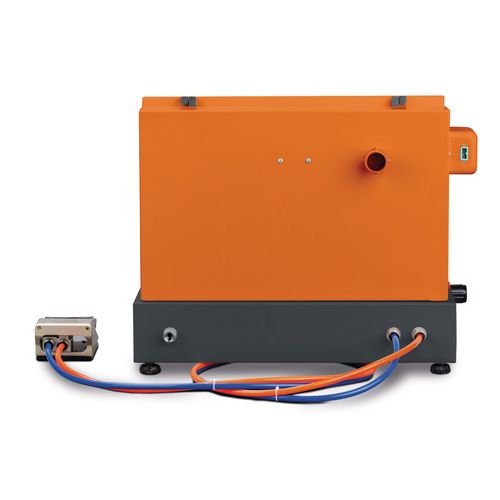

- With compressed air connection on the outside
- Glass bead blasting abrasives, corundum abrasives, silicon carbide, plastic abrasives and much more. used
Room amenities
- Regulation of working pressure via pressure regulator with manometer
- Fixed jet nozzle with 120 ° tilt for comfortable working with two hands

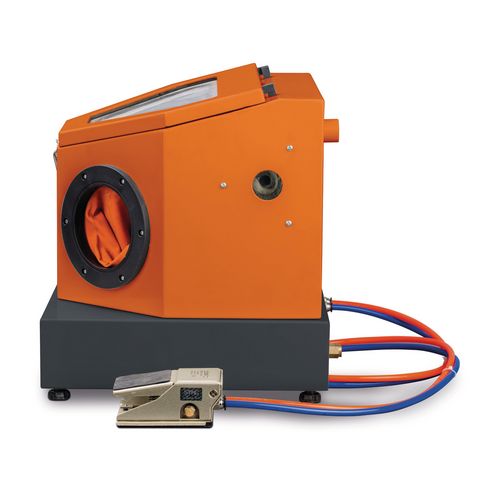

- Airflow control via foot pedal

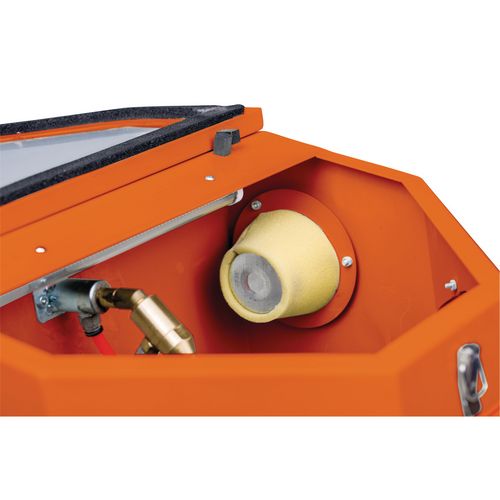

- Integrated cabin ventilation with replaceable air filter

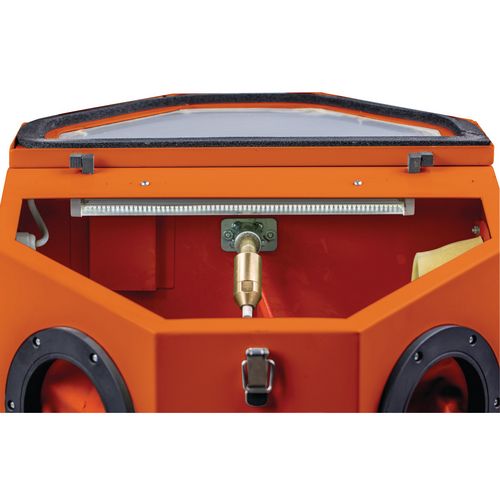

- 12 volt fluorescent tube with 230 volt power supply and external switch
| Air requirement average, approx. | 196 l/min |
| Working pressure | 5.5 – 7.9 bar |
| Abrasive grain size recommended | 0.2 – 0.3 mm |
| Max. abrasive grain size | 0.125 – 0.45 mm |
| Nozzle diameter | 3.5 mm |
| Max. load of grid | 10 kg |
| Max. weight of blast media | 5.45 kg |
| VPE | 1 |
| Dimensions and weights | |
|---|---|
| Cabin volume | 25.4 l |
| Cabin interior length | 410 mm |
| Cabin interior width | 310 mm |
| Cabin interior height | 200 mm |
| Diameter of hand hole | 100 mm |
| Length approx. | 475 mm |
| Width/depth approx. | 370 mm |
| Height approx. | 370 mm |
| Weight approx. | 12,5 kg |
| Opening hatch (see drawing) | |
|---|---|
| A | 150 mm |
| B | 419 mm |
| C | 261 mm |
Unit: pc(s).
Packaging unit: 1
Packaging unit: 1
- 3 ceramic nozzles (3.5 mm)
- 3 replacement foils for viewing window
