| Air requirement average, approx. | 300 l/min |
| Working pressure | 3.4 – 8.0 bar |
| Abrasive grain size recommended | 0.2 – 0.3 mm |
| Max. abrasive grain size | 0.125 – 0.45 mm |
| Max. load of grid | 130 kg |
| Max. weight of blast media | 60 kg |
| Extraction performance | 18 m³/h |
| Extraction unit negative pressure | 8.5 kPa |
| Extraction unit volume flow | 156 m³/h |
| VPE | 1 |
Sandblasters

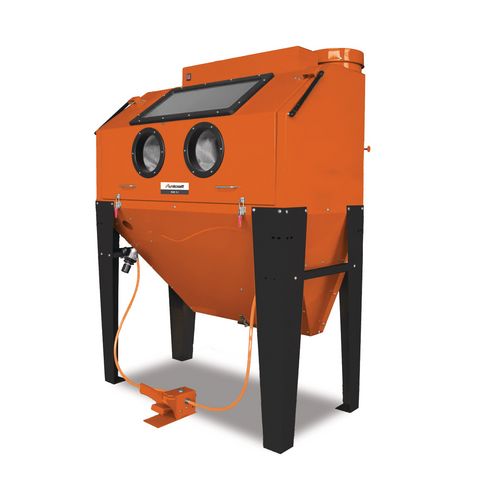

SSK 3.1
For clean blasting without pollution of the working environment
1.549,00
EUR excl. Tax / pc(s).
1.843,31
EUR incl. 19% Tax / pc(s).
Prices are recommended retail prices. Retailer prices may vary.
Art.-No. 6204005
Are you interested in this product?
Put a request
Find Trader
Productdetails
- Suitable for various blasting materials, eg quartz, glass ball, plastic ball, nut cases, etc.
- Ideal for cleaning, rust removal or paint removal of metal parts of all kinds, eg engine parts, fittings, signs, housings, rims, hinges
- High-quality work gloves made of latex are firmly attached to the housing
- Optimum vision and work safety during workpiece machining due to the lens with glued-on protective foil
- Dust-free work due to circumferential seals on cover and door frame
- Stable storage grid allows laying of workpieces in the cabin interior
- With drain opening for changing the blasting material
- Suction pipe for the blasting material attached to the bottom of the collecting container
- With compressed air connection on the outside
- Glass bead blasting, corundum blasting, silicon carbide, plastic blasting, etc. can be used
Room amenities:
- A large side door for loading and unloading
- 2 exhaust air openings (1 exhaust air connection ø 92 mm and 1 exhaust air outlet ø 64 mm) for connecting an extraction system
- 12 volt fluorescent tube with 230 volt power supply and external switch
| Dimensions and weights | |
|---|---|
| Cabin volume | 420 l |
| Cabin interior length | 1170 mm |
| Cabin interior width | 610 mm |
| Cabin interior height | 580 mm |
| Diameter of hand hole | 175 mm |
| Length approx. | 1220 mm |
| Width/depth approx. | 945 mm |
| Height approx. | 1700 mm |
| Weight approx. | 124 kg |
| Electrical Data | |
|---|---|
| Extraction absorbed power | 1.2 kW |
Unit: pc(s).
Packaging unit: 1
Packaging unit: 1
- High quality blasting gun with ceramic nozzle
- 4 ceramic nozzles (6/6/7/7 mm)
- 5 replacement foils for viewing windows
