    Brandimage to Product SSK 5

    Sandblasters

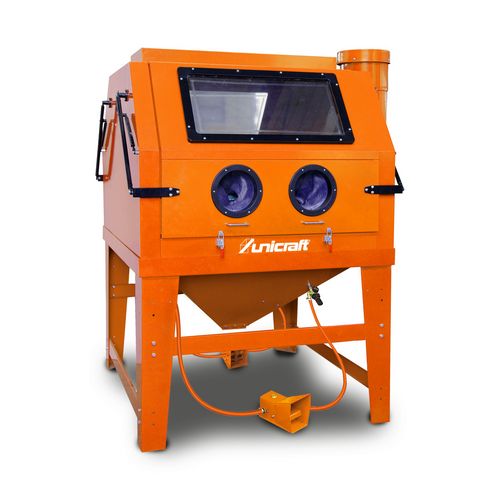

    SSK 5

    with door opening on both sides and integrated extraction system

    2.735,00 EUR excl. Tax / pc(s).
    3.254,65 EUR incl. 19% Tax / pc(s).
    Promotional price *
    2.299,00 EUR excl. Tax / pc(s).
    2.735,81 EUR incl. 19% Tax / pc(s).

    Prices are recommended retail prices. Retailer prices may vary.
    * Promotional price valid until 31.08.2025 in Germany.

    Sicherheits- und Warnhinweise

    Safety and warning notices

    Art.-No. 6204006

    Are you interested in this product?
  • Put a request
  • Find Trader

    • Productdetails

    • Suitable for various blasting materials, e.g. quartz, glass beads, plastic beads, etc.
    • Ideal for cleaning, derusting or paint removal
    • High-quality latex work gloves are firmly attached to the housing
    • Optimum visibility thanks to protective screen with replaceable glass protection film
    • Dust-free working thanks to all-round seals on the lid and door frame

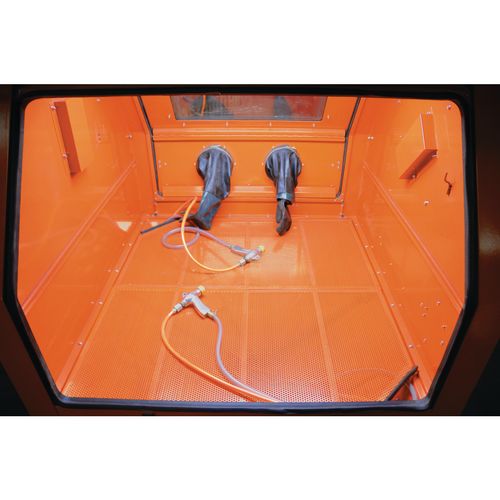

    • Sturdy storage grid allows workpieces to be placed inside the cabin
    • With drain opening for changing the blasting material
    • Suction pipe for the blasting material attached to the bottom of the collection container

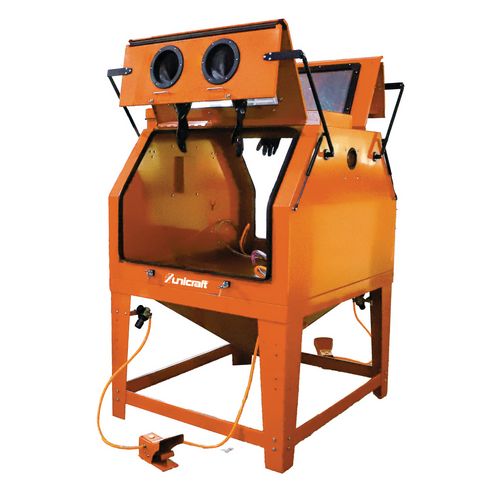

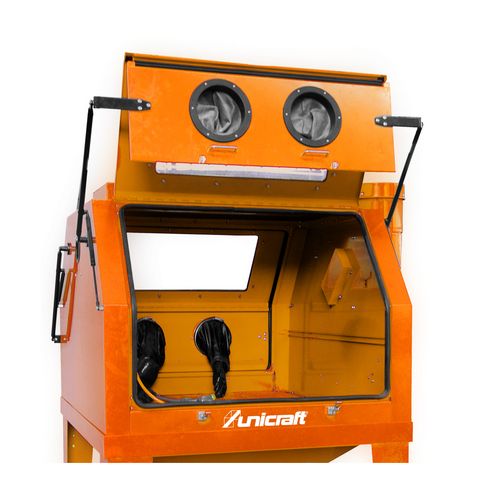

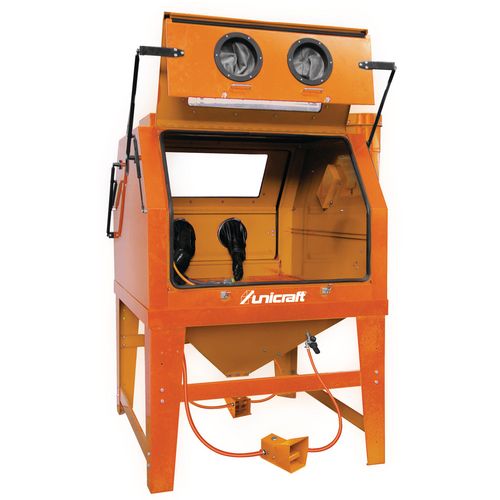

    • No laborious turning of workpieces thanks to door opening on both sides via gas pressure springs
    • Integrated extraction system with replaceable air filter for optimum visibility
    • Blasting gun installed on both sides with foot pedal operation for fast and efficient sandblasting
    • Four fluorescent tubes (230 V), in separate housing with protective screen and replaceable protective film for a well-lit work area
    • Two separate switches for extraction and cabin lighting
    • Regulation of the working pressure via pressure regulator with pressure gauge
    • Cross struts on the feet enable easy transportation with a pallet truck
    • Pneumatic safety cut-out when the door is opened



    Data sheets
    Sicherheits- und Warnhinweise
    Safety and warning notices
    Working pressure3.4 – 8.0 bar
    Abrasive grain size recommended0.2 0.3 mm
    Max. abrasive grain size0.125 0.45 mm
    Max. load of grid150 kg
    Max. weight of blast media220 kg
    Extraction performance25 m³/h
    VPE1
    Dimensions and weights
    Cabin volume1200 l
    Cabin interior length1300 mm
    Cabin interior width1180 mm
    Cabin interior height825 mm
    Diameter of hand hole175 mm
    Length approx.1524 mm
    Width/depth approx.1399 mm
    Height approx.1839 mm
    Weight approx.215 kg
    Electrical Data
    Extraction absorbed power1.2 kW
    Supply voltage230 V
    Mains frequency50 Hz
    Unit: pc(s).
    Packaging unit: 1
