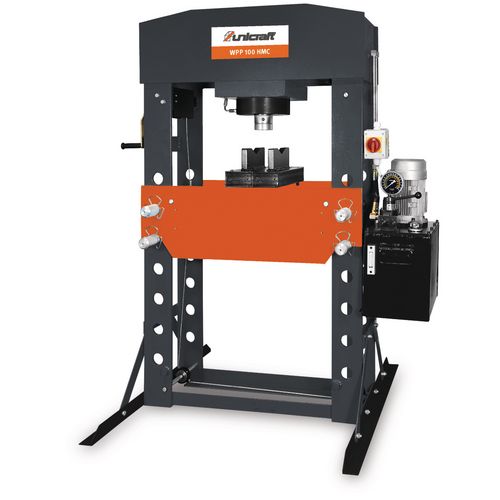

Electro-hydraulic workshop press
WPP 100 HMC
Heavy-duty design for demanding use
6.190,00
EUR excl. Tax / pc(s).
7.366,10 EUR incl. 19% Tax / pc(s).
7.366,10 EUR incl. 19% Tax / pc(s).
Promotional price *
5.499,00 EUR excl. Tax / pc(s).6.543,81 EUR incl. 19% Tax / pc(s).
Prices are recommended retail prices. Retailer prices may vary.
* Promotional price valid until 31.08.2025 in Germany.
Art.-No. 6301100
Are you interested in this product?
Put a request
Find Trader
Productdetails

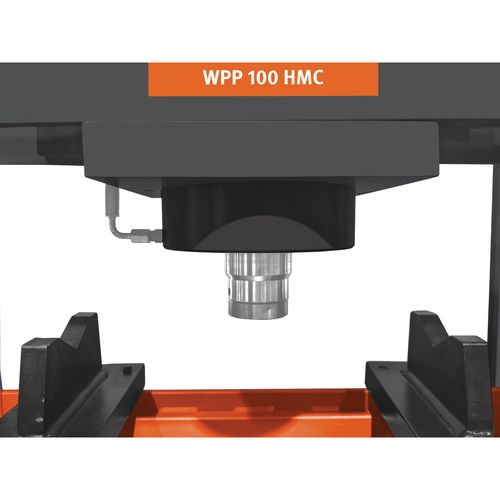

- Electro-hydraulic press with a pressing force of up to 100 t
- Sturdy welded construction

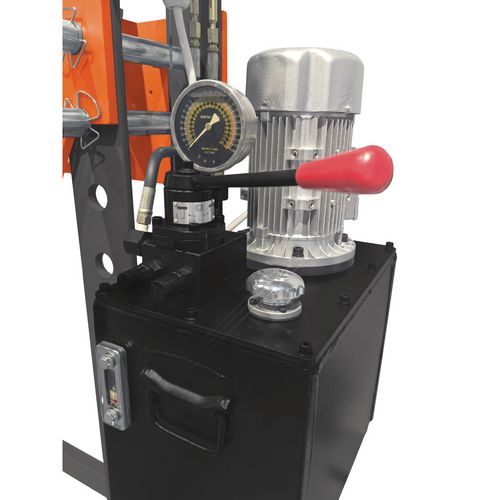

- Pressing pressure can be read via pressure gauge

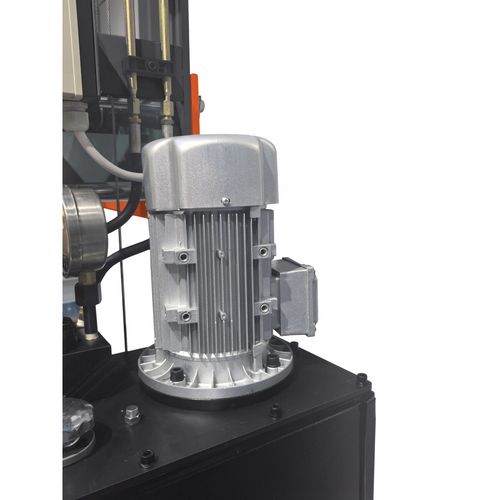

- Faster pressing processes than standard hydraulic presses thanks to integrated electric motor

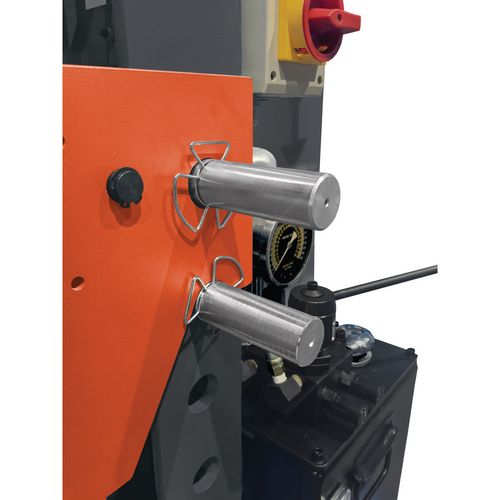

- Quick and safe table height adjustment thanks to hand crank with cable pull and bolt safety device
- For pressing out and pressing in bearings, bolts and bushings as well as for repair and assembly work, pressing work, load tests, weld sample tests and much more
| Pressure force | 100 t |
| Piston stroke | 300 mm |
| Piston travel | 255 mm |
| Press speed | 4.5 mm/s |
| VPE | 1 |
| Dimensions and weights | |
|---|---|
| Width/depth of machine feet | 990 mm |
| Frame depth | 268 mm |
| Hole spacing for table height adjustment | 140 mm |
| Clear height max. | 813 mm |
| Clear height min. | 113 mm |
| Clear width | 787 mm |
| Diameter piston rod | 140 mm |
| Length approx. | 1199 mm |
| Width/depth approx. | 990 mm |
| Height approx. | 1865 mm |
| Weight approx. | 690 kg |
| Electrical Data | |
|---|---|
| Drive motor output | 1,5 kW |
| Supply voltage | 400 V |
| Mains frequency | 50 Hz |
| Hydraulic system | |
|---|---|
| Hydraulic oil tank capacity | 24 l |
Unit: pc(s).
Packaging unit: 1
Packaging unit: 1

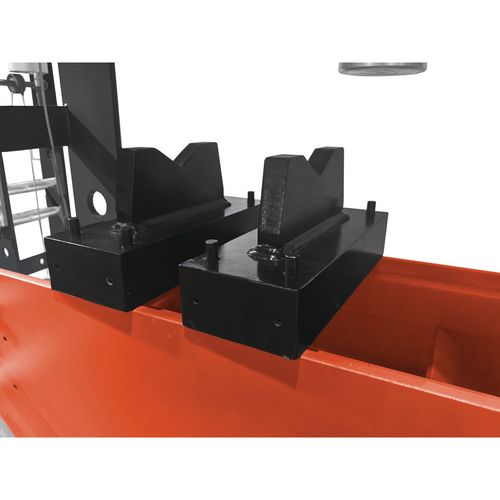

- Two prism blocks for inserting round material
- Supplied without hydraulic oil
