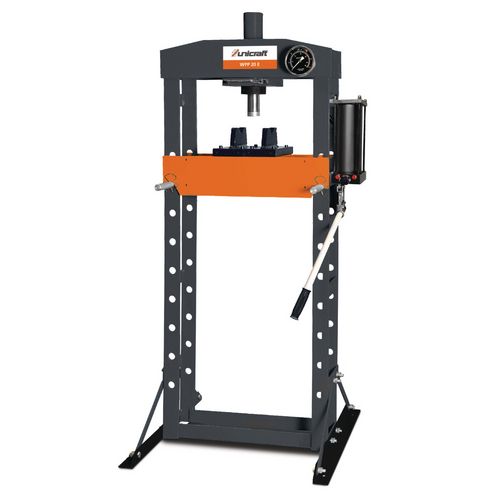

Hydraulic workshop press

WPP 20 E

Robust press with conventional equipment

679,00 EUR excl. Tax / pc(s).
808,01 EUR incl. 19% Tax / pc(s).
Promotional price *
589,00 EUR excl. Tax / pc(s).
700,91 EUR incl. 19% Tax / pc(s).

Prices are recommended retail prices. Retailer prices may vary.
* Promotional price valid until 31.08.2020 in Germany.

Art.-No. 6300020

Are you interested in this product?
  • Put a request
  • Find Trader
  • Productdetails

    • Ideal for versatile use in crafts and repairs in schools, training workshops, garages, workshops, agriculture, forestry and horticulture
    • Press cylinder with integrated return spring
    • Display of the pressure via pressure gauge



    • Robust welded frame with perforation: ten-level height-adjustable press table with locking pin
    • Piston feed via hydraulic hand pump
    • Laterally displaceable cylinder



    Pressure force20 t
    Piston stroke186.5 mm
    Piston travel176 mm
    VPE1
    Dimensions and weights
    Diameter piston rod48 mm
    Clear width510 mm
    Clear height min.38.5 mm
    Clear height max.918.5 mm
    Hole spacing for table height adjustment110 mm
    Frame depth132 mm
    Width/depth of machine feet560 mm
    Length730 mm
    Width/depth560 mm
    Height1625 mm
    Weight approx.105 kg
    Unit: pc(s).
    Packaging unit: 1
