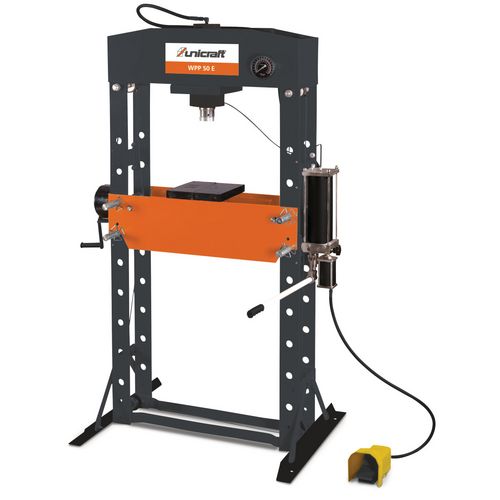

• Productimage for WPP 50 E
  • Productimage for WPP 50 E
  • Productimage for WPP 50 E
  • Productimage for WPP 50 E
Brandimage to Product WPP 50 E

Hydraulic workshop press

WPP 50 E

Robust press with conventional equipment

1.979,00 EUR excl. Tax / pc(s).
2.355,01 EUR incl. 19% Tax / pc(s).
Promotional price *
1.699,00 EUR excl. Tax / pc(s).
2.021,81 EUR incl. 19% Tax / pc(s).

Prices are recommended retail prices. Retailer prices may vary.
* Promotional price valid until 31.08.2020 in Germany.

Art.-No. 6300050

Are you interested in this product?
  • Put a request
  • Find Trader
  • Productdetails

    • Ideal for versatile use in crafts and repairs in schools, training workshops, garages, workshops, agriculture, forestry and horticulture
    • Press cylinder with integrated return spring
    • Display of the pressure via pressure gauge



    • Robust welded frame with perforation: eight-level height-adjustable press table with locking pin
    • With laterally displaceable cylinder
    • Piston feed either by hydraulic hand pump or pneumatic foot switch possible



    Pressure force50 t
    Piston stroke200 mm
    Piston travel245 mm
    VPE1
    Dimensions and weights
    Diameter piston rod75 mm
    Clear width730 mm
    Clear height min.69 mm
    Clear height max.1048 mm
    Hole spacing for table height adjustment140 mm
    Frame depth207 mm
    Width/depth of machine feet800 mm
    Length1030 mm
    Width/depth800 mm
    Height1877 mm
    Weight approx.302.5 kg
    Pneumatic connection
    Air consumption approx.200 l/min
    Pneumatic operating pressure7.5 – 8.5 bar
    Unit: pc(s).
    Packaging unit: 1
