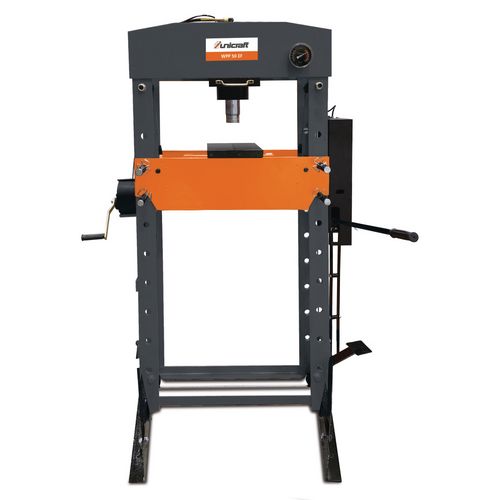

    Productimage for WPP 50 EF
    Brandimage to Product WPP 50 EF

    Hydraulic workshop press

    WPP 50 EF

    Robust press with conventional equipment

    1.999,00 EUR excl. Tax / pc(s).
    2.378,81 EUR incl. 19% Tax / pc(s).

    Prices are recommended retail prices. Retailer prices may vary.

    Sicherheits- und Warnhinweise

    Sicherheitsdatenblatt

    Safety and warning notices

    Art.-No. 6300051

    Are you interested in this product?
  • Put a request
  • Find Trader

    • Productdetails

    • Ideal for versatile use in crafts and repairs in schools, training workshops, garages, workshops, agriculture, forestry and horticulture
    • Press cylinder with integrated return spring
    • Display of the pressure via pressure gauge



    • Robust welded frame with perforation: eight-level height-adjustable press table with locking pin
    • With laterally displaceable cylinder
    • Piston feed either by hydraulic hand pump or pedal possible



    Data sheets
    Sicherheits- und Warnhinweise
    Sicherheitsdatenblatt
    Safety and warning notices
    Pressure force50 t
    Piston stroke200 mm
    Piston travel245 mm
    Piston stroke per pumping operation footpedal1.65 mm
    VPE1
    Dimensions and weights
    Min. installation height68 mm
    Max. installation height1048 mm
    Clear width730 mm
    Diameter piston rod75 mm
    Length approx.1030 mm
    Width/depth approx.800 mm
    Height approx.1877 mm
    Weight approx.300 kg
    Hydraulic system
    Hydraulic oil tank capacity1.8 l
