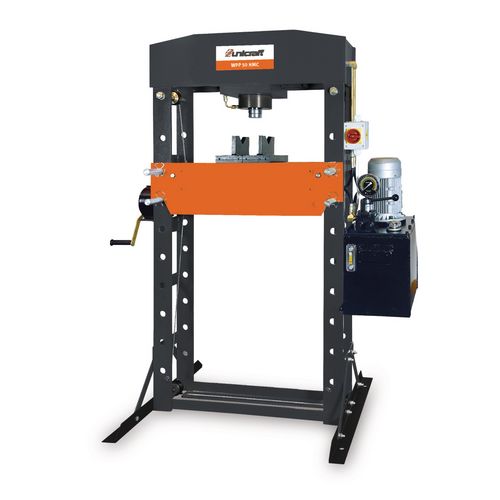

Electro-hydraulic workshop press
WPP 50 HMC
Heavy-duty design for demanding use
3.790,00
EUR excl. Tax / pc(s).
4.510,10 EUR incl. 19% Tax / pc(s).
4.510,10 EUR incl. 19% Tax / pc(s).
Promotional price *
3.399,00 EUR excl. Tax / pc(s).4.044,81 EUR incl. 19% Tax / pc(s).
Prices are recommended retail prices. Retailer prices may vary.
* Promotional price valid until 31.08.2025 in Germany.
Art.-No. 6301051
Are you interested in this product?
Put a request
Find Trader
Productdetails
- Electro-hydraulic press with a pressing force of up to 50 t
- Sturdy welded construction

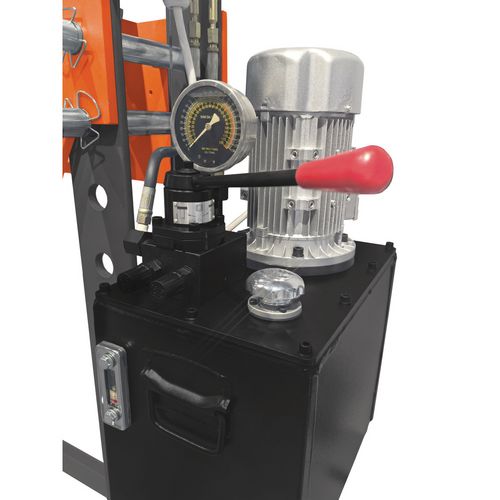

- Pressing pressure can be read via pressure gauge
- Faster pressing processes than standard hydraulic presses thanks to integrated electric motor

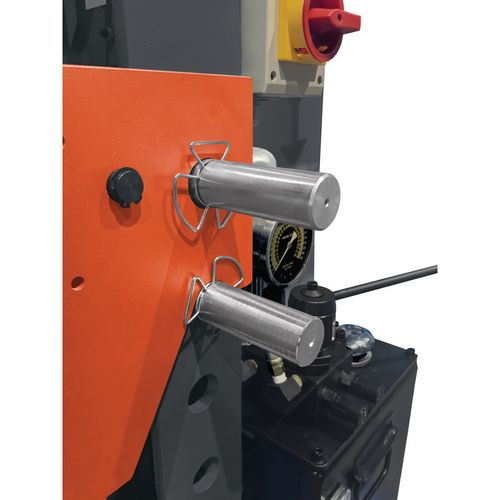

- Quick and safe table height adjustment thanks to hand crank with cable pull and bolt safety device
- For pressing out and pressing in bearings, bolts and bushings as well as for repair and assembly work, pressing work, load tests, weld sample tests and much more
| Pressure force | 50 t |
| Piston stroke | 200 mm |
| Piston travel | 245 mm |
| Press speed | 9 mm/s |
| VPE | 1 |
| Dimensions and weights | |
|---|---|
| Width/depth of machine feet | 800 mm |
| Frame depth | 207 mm |
| Hole spacing for table height adjustment | 140 mm |
| Clear height max. | 1059 mm |
| Clear height min. | 79 mm |
| Clear width | 730 mm |
| Diameter piston rod | 100 mm |
| Length approx. | 1030 mm |
| Width/depth approx. | 800 mm |
| Height approx. | 1835 mm |
| Weight approx. | 297 kg |
| Electrical Data | |
|---|---|

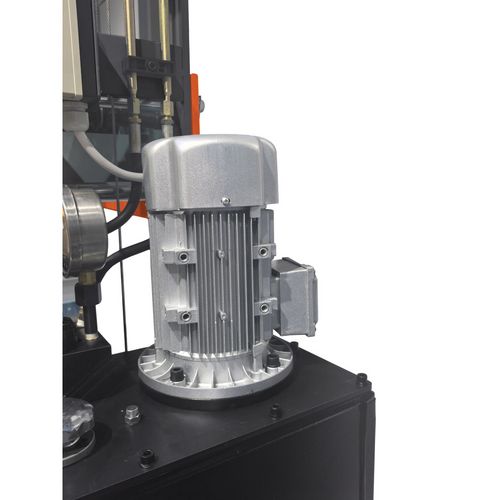

| Drive motor output | 1,5 kW |
| Supply voltage | 400 V |
| Mains frequency | 50 Hz |
| Hydraulic system | |
|---|---|
| Hydraulic oil tank capacity | 20 l |
Unit: pc(s).
Packaging unit: 1
Packaging unit: 1

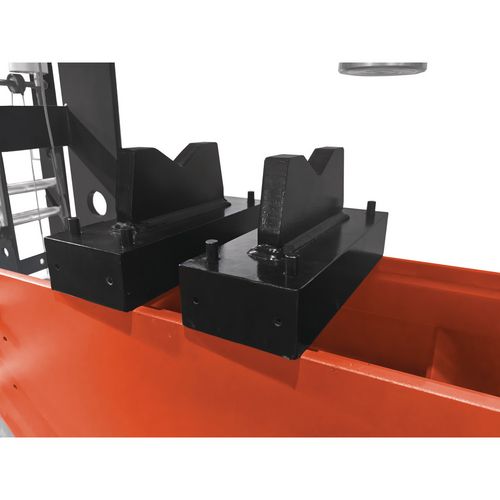

Two prism blocks for inserting round material
Hydraulic oil not included!
