| Pressure force | 75 t |
| Piston stroke | 250 mm |
| Piston travel | 260 mm |
| Press speed | 7 mm/s |
| VPE | 1 |
Electro-hydraulic workshop press
WPP 75 HMC
Heavy-duty design for demanding use
4.390,00
EUR excl. Tax / pc(s).
5.224,10
EUR incl. 19% Tax / pc(s).
Prices are recommended retail prices. Retailer prices may vary.
Art.-No. 6301076
Are you interested in this product?
Put a request
Find Trader
Productdetails
- Electro-hydraulic press with a pressing force of up to 75 t
- Sturdy welded construction
- Pressing pressure can be read via pressure gauge

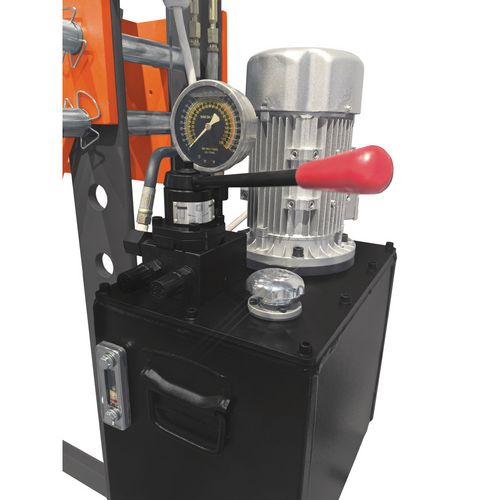

- Faster pressing processes than standard hydraulic presses thanks to integrated electric motor

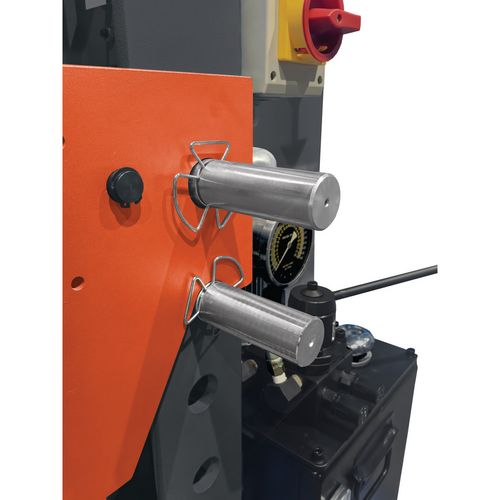

- Quick and safe table height adjustment thanks to hand crank with cable pull and bolt safety device
- For pressing out and pressing in bearings, bolts and bushings as well as for repair and assembly work, pressing work, load tests, weld sample tests and much more
- Faster pressing processes than standard hydraulic presses thanks to integrated electric motor
- Table height adjustment via hand crank with cable pull and bolt safety device
- For pressing out and pressing in bearings, bolts and bushings as well as for repair and assembly work, pressing work, load tests, weld sample tests and much more
| Dimensions and weights | |
|---|---|
| Frame depth | 800 mm |
| Hole spacing for table height adjustment | 217 mm |
| Min. installation height | 102 mm |
| Clear height max. | 884 mm |
| Clear height min. | 169 mm |
| Clear width | 800 mm |
| Diameter piston rod | 93 mm |
| Length approx. | 1146 mm |
| Width/depth approx. | 800 mm |
| Height approx. | 1925 mm |
| Weight approx. | 418 kg |
| Electrical Data | |
|---|---|
| Drive motor output | 1,5 kW |
| Supply voltage | 400 V |
| Mains frequency | 50 Hz |
| Hydraulic system | |
|---|---|
| Hydraulic oil tank capacity | 22 l |
Unit: pc(s).
Packaging unit: 1
Packaging unit: 1

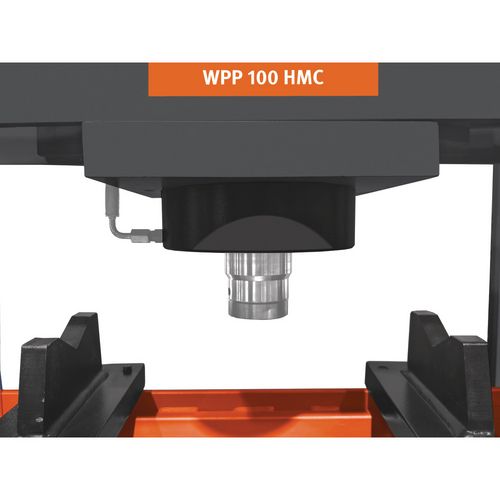

- Two prism blocks for inserting round material
- Supplied without hydraulic oil
