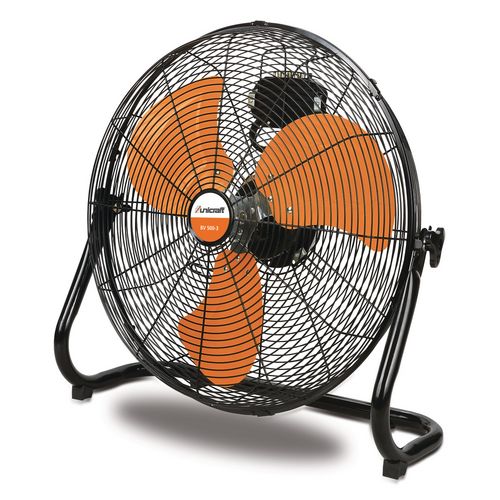

    Floor fan

    BV 500-3

    in a stable all-metal design and three speed

    99,00 EUR excl. Tax / pc(s).
    117,81 EUR incl. 19% Tax / pc(s).
    Promotional price *
    89,90 EUR excl. Tax / pc(s).
    106,98 EUR incl. 19% Tax / pc(s).

    Prices are recommended retail prices. Retailer prices may vary.
    * Promotional price valid until 31.08.2025 in Germany.

    Sicherheits- und Warnhinweise

    Safety and warning notices

    Art.-No. 6265153

    Are you interested in this product?
  • Put a request
  • Find Trader

    • Productdetails

    • Directly driven motor with copper winding
    • Three high-performance fan blades made of balanced steel
    • Fan angle easily adjustable
    • Powder-coated protective grille
    • Solid rubber feet for high stability



    • Three high-performance fan blades made of balanced steel
    • Fan angle easily adjustable
    • Solid rubber feet for high stability



    Data sheets
    Sicherheits- und Warnhinweise
    Safety and warning notices
    Device data
    Max. air flow2295 m³/h
    Air flow at speed 11785 m³/h
    Air flow at speed 22125 m³/h
    Air flow at speed 32295 m³/h
    Dimensions and weights
    Outlet dimensions560 mm
    Diameter intake560 mm
    Basket diameter560 mm
    Length approx.590 mm
    Width/depth approx.210 mm
    Height approx.380 mm
    Weight approx.6.4 kg
    Electrical Data
    Drive motor output0,18 kW
    Speed levels3
    Connection cable length1.8 m
    Supply voltage230 V
    Mains frequency50 Hz
    Noise emission
    Noise level68 dB(A)
    VPE1
    Unit: pc(s).
    Packaging unit: 1
