| Device data | |
|---|---|
| Pulse rate | 0.5 999 Hz |
| Ignition | high frequency |
| Torch cooling | gas / water |

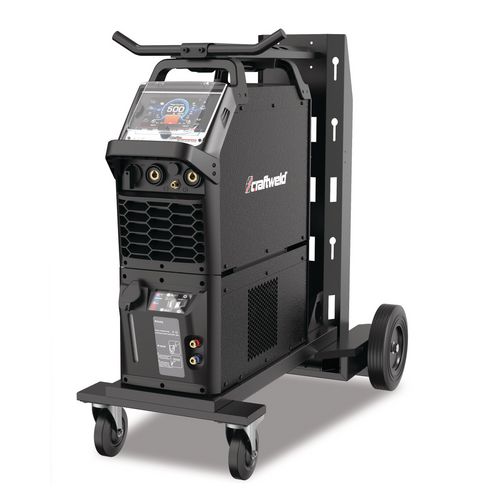

TIG welding machine
CRAFT-TIG PRO 503 AC/DC PULSE
Robust Industrial Welder with SiC Inverter Technology
Price upon request
Prices are recommended retail prices. Retailer prices may vary.
Art.-No. 1364504
Are you interested in this product?
Put a request
Find Trader
Productdetails
- PFC Technology (Power Factor Correction): High power factor of over 0.99 for energy-efficient operation and reduced mains load
- Dual-Voltage Operation: Flexible use with single-phase power at 110 V and 230 V
- SiC Inverter Technology: Advanced silicon carbide modules for a stable arc, high reliability, and low switching losses
- Comprehensive Welding Modes: Supports Lift-TIG, HF-TIG, TIG MIX, Lift-TIG SYN, HF-TIG SYN, MMA, and MMA SYN
- SYN Welding Programs: Predefined parameters for TIG and Stick (MMA) simplify operation and reduce setup effort and preparation time
- TIG AC+DC (TIG MIX): Alternating between AC and DC increases heat input, improves penetration depth, and reduces electrode wear
- AC Waveforms: 9 selectable waveforms (Square, Sine, Triangle) for optimal adaptation to various welding tasks
- Dynamic Arc Control: A focused, stable arc for better root pass penetration and greater weld depth

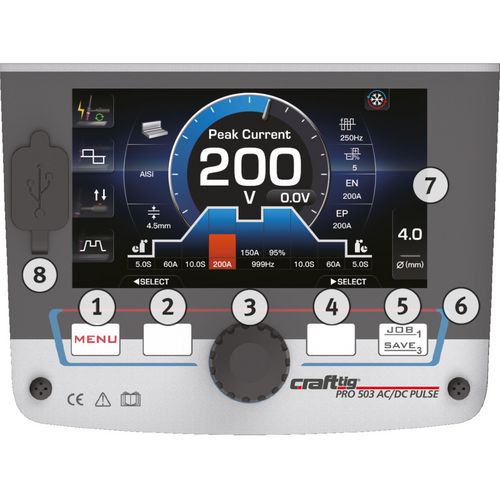

- Color Touch Display: High-resolution, eye-friendly display with clear menu navigation, fast response times, and precise adjustment capabilities
- Job Memory: 100 memory slots for welding parameters with quick save and recall functions
- RGB Status Indicator: Dynamic light signal featuring a flashing red light in the event of malfunctions for rapid fault detection
- Multilingual User Interface: Support for multiple languages to ensure ease of use
- Integrated Protection Functions: Sensors for temperature, voltage, and current ensure high operational safety
- Torch Control: Up/Down buttons for current adjustment directly on the torch
- Torch Control Dial: Fine-tuning of welding amperage directly at the handle
- Precise setting and display of welding parameters via large LC display
- TIG pulsing at 999 Hz enables welding with reduced heat input
- HF high frequency ignition ignites during TIG welding without touching the workpiece
- In AC mode adjustable waveforms, balance and frequency
- Water cooling unit 7 liters and trolley standard
| Dimensions and weights | |
|---|---|
| Length approx. | 670 mm |
| Width/depth approx. | 290 mm |
| Height approx. | 490 mm |
| Weight approx. | 29.5 kg |
| Duty cycle | |
|---|---|
| at Imax. 40°C TIG DC | 60 % |
| at Imax. 40°C electrode | 60 % |
| Current at 100% DC 40°C TIG DC | 390 A |
| Current at 100% DC 40°C electrode | 390 A |
| Electrical connections | |
|---|---|
| Power consumption in idle mode | < 50 W |
| Electrical Data | |
|---|---|
| Total output | 20 kVA |
| Input current TIG AC | 32.2 A |
| Input current TIG DC | 33.8 A |
| Input current electrode AC | 40.5 A |
| Input current electrode DC | 42.5 A |
| Supply voltage | 400 V |
| Mains frequency | 50 Hz |
| Electrode | |
|---|---|
| Weldable electrodes | 1.6 5.0 mm |
| Input | |
|---|---|
| TIG AC | 22.3 kVA |
| TIG DC | 23.4 kVA |
| Electrode AC | 28 kVA |
| Electrode DC | 29.4 kVA |
| Efficiency | 89.14 % |
| Setting range | |
|---|---|
| TIG DC | 5 500 A |
| Electrode | 10 – 500 A |
| Standards and certifications | |
|---|---|
| Standard | EN 60974-1:2012, EN 60974-10:2014 |
| EMC class | A |
| Explanation EMC class | This Class A welding equipment is not intended for use in residential areas where power is supplied by a public low-voltage power supply system. |
| Marking | CE |
| VPE | 1 |
Unit: pc(s).
Packaging unit: 1
Packaging unit: 1
- Earth cable 70 mm² 4 m with 500 A earth clamp
- TIG torch SR 18 4 m
- Gas hose 4 m
- Pressure reducer
- Trolley
- Cooling unit
| Process MMA | ✔ |
| Process TIG pulsing | ✔ |
| Water cooling device | 7 l / 400 V with 1 m connection cable |
| Programs storable | ✔ |
