Load-bearing capacity | 1 t |
Travel speed | 6.7 / 20 m/min |
Carrier flange width | 74 – 140 mm |
Max. curve radius | 4500 mm |
VPE | 1 |

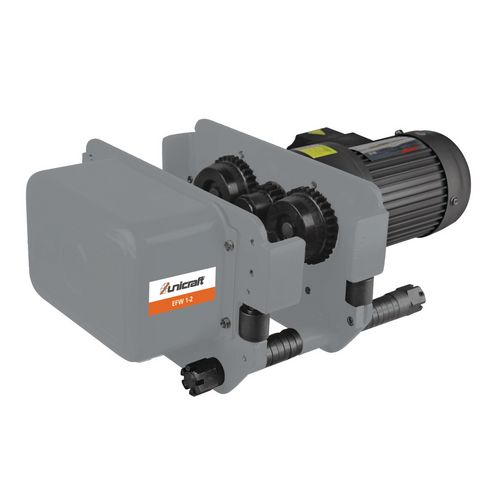

Electric trolley
With two driving speeds and a maximum carrying capacity of 1 t
Prices are recommended retail prices. Retailer prices may vary.
* Promotional price valid until 31.08.2024 in Germany.
Art.-No. 6194410
Load-bearing capacity | 1 t |
Travel speed | 6.7 / 20 m/min |
Carrier flange width | 74 – 140 mm |
Max. curve radius | 4500 mm |
VPE | 1 |
Dimensions and weights | |
---|---|
Holding eye width | 24 mm |
Mounting plate thickness | 14 mm |
Distance between holding eye and support surface | 145 mm |
Wheel diameter | 68 mm |
Motor extension | 336 mm |
Control cabinet extension | 135 mm |
Length approx. | 741 mm |
Width/depth approx. | 340 mm |
Height approx. | 260 mm |
Weight approx. | 33 kg |
Electrical Data | |
---|---|
Absorbed power drive motor | 0.4/0.167 kW |
Degree of protection | IP 54 |
Supply voltage | 400 V |
Mains frequency | 50 Hz |
