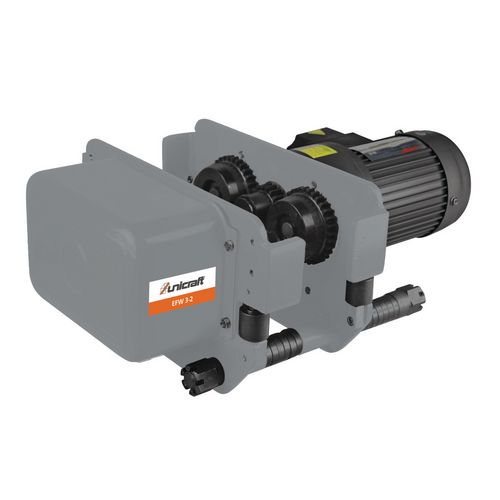

    Productimage for EFW 3-2
    Brandimage to Product EFW 3-2

    Electric trolley

    EFW 3-2

    1.279,00 EUR excl. Tax / pc(s).
    1.522,01 EUR incl. 19% Tax / pc(s).
    Promotional price *
    1.129,00 EUR excl. Tax / pc(s).
    1.343,51 EUR incl. 19% Tax / pc(s).

    Prices are recommended retail prices. Retailer prices may vary.
    * Promotional price valid until 31.08.2025 in Germany.

    Sicherheits- und Warnhinweise

    Safety and warning notices

    Art.-No. 6194430

    Are you interested in this product?
  • Put a request
  • Find Trader

    • Productdetails

    • Power connection and control of the chassis via the control bottle of the associated electric chain hoist
    • Suitable for beams with profile types I, IPB, IPBl, IPBv and IPE and specified carrier flange width



    Data sheets
    Sicherheits- und Warnhinweise
    Safety and warning notices
    Load capacity3 t
    Travel speed18 / 6 m/min
    Carrier flange width100 – 170 mm
    Max. curve radius5000 mm
    VPE1
    Dimensions and weights
    Holding eye width36 mm
    Mounting plate thickness16 mm
    Distance between holding eye and support surface210 mm
    Wheel diameter96 mm
    Motor extension340 mm
    Control cabinet extension138 mm
    Length approx.750 mm
    Width/depth approx.370 mm
    Height approx.340 mm
    Weight approx.56 kg
    Electrical Data
    Absorbed power drive motor0.6 / 0.23 kW
    Degree of protectionIP 54
    Supply voltage400 V
    Mains frequency50 Hz
    Unit: pc(s).
    Packaging unit: 1
