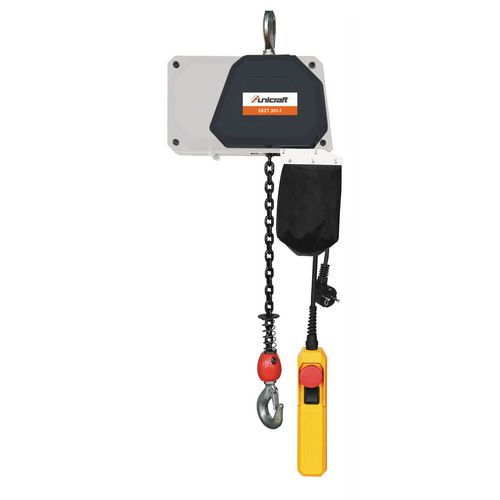

EKZT 301-1

379,00 EUR excl. Tax / pc(s).
451,01 EUR incl. 19% Tax / pc(s).

Prices are recommended retail prices. Retailer prices may vary.

Sicherheits- und Warnhinweise

Safety and warning notices

Art.-No. 6194503

Are you interested in this product?

Put a request

Find Trader

Productdetails

Suspension of the chain hoist by means of carrying hooks
Overload protection by friction clutch
Integrated operating limit switch
Safe stowage of the chain through standard chain memory
Chain hoist control via control bottle

Data sheets
Sicherheits- und Warnhinweise
Safety and warning notices

Load capacity	0.3 t
Stroke	3 m
Lifting speed(s)	3 m/min
Control unit cable length	1.6 m
Number of chain strands	1
VPE	1

Dimensions and weights
Length approx.	288 mm
Width/depth approx.	221 mm
Height approx.	442 mm
Weight approx.	14.3 kg

Electrical Data
Degree of protection	IP 54
Chain hoist output	0.41 kW
Duty type drive motor	S3
Supply voltage	230 V
Mains frequency	50 Hz

Unit: pc(s).
Packaging unit: 1
