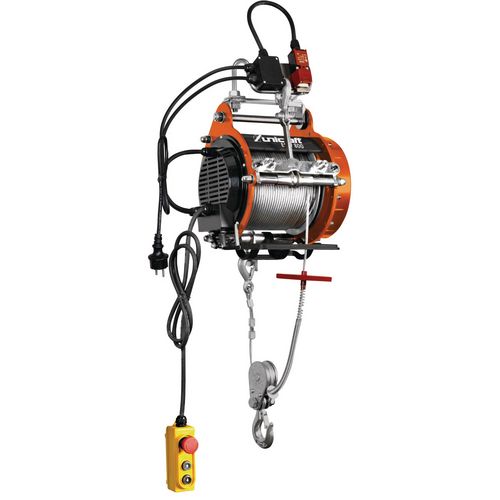

    Electric winch

    ESW 800

    With max. 30 m lifting height

    589,00 EUR excl. Tax / pc(s).
    700,91 EUR incl. 19% Tax / pc(s).
    Promotional price *
    539,00 EUR excl. Tax / pc(s).
    641,41 EUR incl. 19% Tax / pc(s).

    Prices are recommended retail prices. Retailer prices may vary.
    * Promotional price valid until 31.08.2026 in Germany.

    Art.-No. 6199800

    Are you interested in this product?
  • Put a request
  • Find Trader

    • Productdetails

    • Rope guide roller supports the rolling up of the rope
    • New storage increases the life of the engine
    • With quick coupling for immediate use without complex assembly
    • By a pulley doubled the lifting power



    Control unit cable length5 m
    Lifting force without deflection pulley400 kg
    Lifting force with deflection pulley800 kg
    Stroke without deflection pulley30 m
    Stroke with deflection pulley15 m
    Max. lifting speed without deflection pulley8 m/min
    Max. lifting speed with deflection pulley4 m/min
    VPE1
    Dimensions and weights
    Cable diameter5 mm
    Length approx.310 mm
    Width/depth approx.330 mm
    Height approx.440 mm
    Weight approx.32 kg
    Electrical Data
    Main motor1.3 kW
    Supply voltage230 V
    Mains frequency50 Hz
    Unit: pc(s).
    Packaging unit: 1
