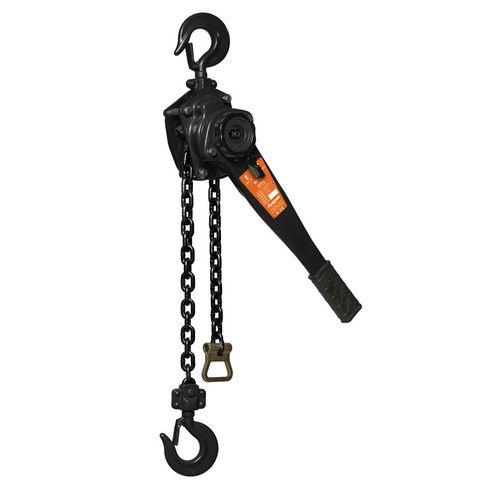

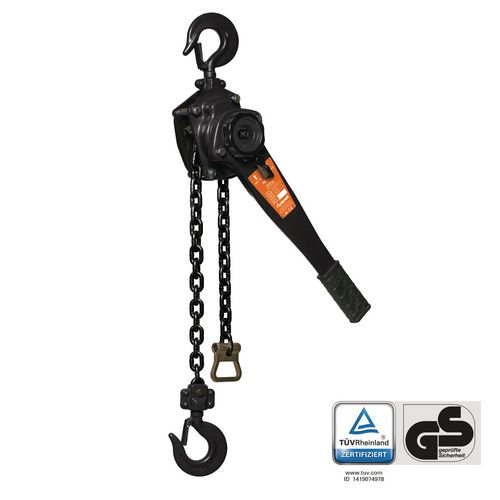

    Productimage for HZ 751
    Brandimage to Product HZ 751

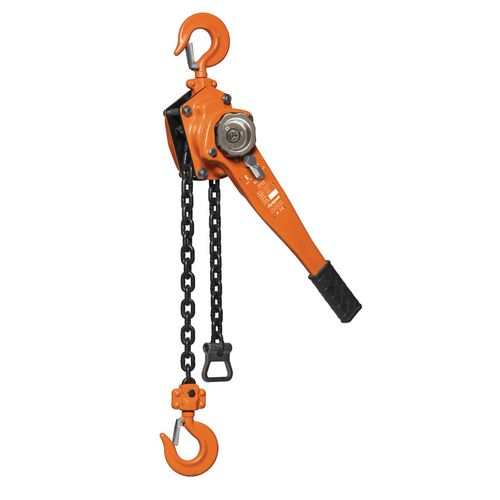

    Lever Hoist

    HZ 751

    For lifting and pulling loads

    95,90 EUR excl. Tax / pc(s).
    114,12 EUR incl. 19% Tax / pc(s).
    Promotional price *
    89,90 EUR excl. Tax / pc(s).
    106,98 EUR incl. 19% Tax / pc(s).

    Prices are recommended retail prices. Retailer prices may vary.
    * Promotional price valid until 31.08.2024 in Germany.

    Art.-No. 6171175

    Are you interested in this product?
  • Put a request
  • Find Trader

    • Productdetails

    • Quick attachment of the load or pulling the load chain in both directions by chain freewheeling
    • Safe holding of the load by load pressure brake with asbestos-free brake discs
    • Drop-forged, rotating load and suspension hooks with safety catch
    • Galvanized load chain according to DIN ISO 3077
    • High-strength, painted steel housing



    Load-bearing capacity0,75 t
    Stroke1.5 m
    Hand force at rated load140 N
    Number of chain strands1
    VPE1
    Dimensions and weights
    Lever length290 mm
    Length approx.135 mm
    Width/depth approx.148 mm
    Height approx.320 mm
    Weight approx.6.3 kg
    Unit: pc(s).
    Packaging unit: 1
