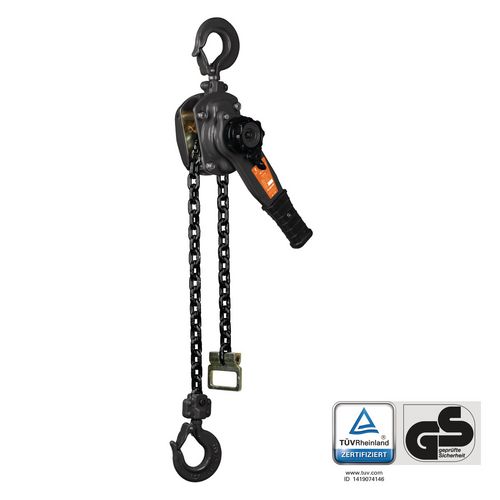

    Productimage for HZ 752
    Brandimage to Product HZ 752

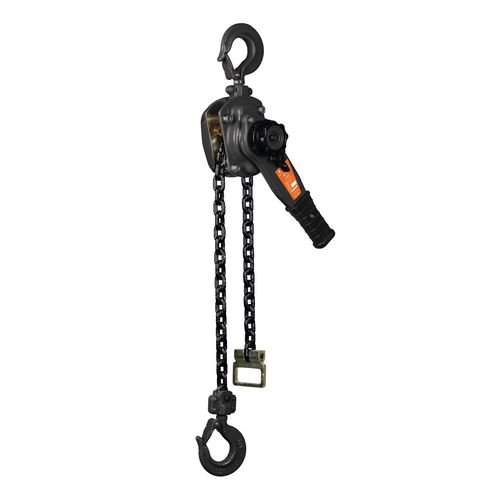

    Lever Hoist

    HZ 752

    For lifting and pulling loads

    106,90 EUR excl. Tax / pc(s).
    127,21 EUR incl. 19% Tax / pc(s).
    Promotional price *
    93,90 EUR excl. Tax / pc(s).
    111,74 EUR incl. 19% Tax / pc(s).

    Prices are recommended retail prices. Retailer prices may vary.
    * Promotional price valid until 31.08.2025 in Germany.

    Sicherheits- und Warnhinweise

    Safety and warning notices

    Art.-No. 6171176

    Are you interested in this product?
  • Put a request
  • Find Trader

    • Productdetails

    • Fast load application or load chain pulling in both directions with chain lock
    • Safe load holding by load pressure brake with asbestos free brake discs
    • Drop forged swivel load and suspension hooks with safety
    • Load Chain to EN 818-7
    • High Strength Painted Steel Body
    • Compact Short Lever Design
    • Matching reel and undercarriage systems available from Unicraft



    Data sheets
    Data sheet measurement
    Sicherheits- und Warnhinweise
    Safety and warning notices
    Load capacity0.75 t
    Stroke1.5 m
    Hand force at rated load147 N
    VPE1
    Dimensions and weights
    Lever length250 mm
    Load hook inner diameter40 mm
    Length approx.160 mm
    Width/depth approx.133 mm
    Height approx.320 mm
    Weight approx.7.1 kg
    Unit: pc(s).
    Packaging unit: 1
