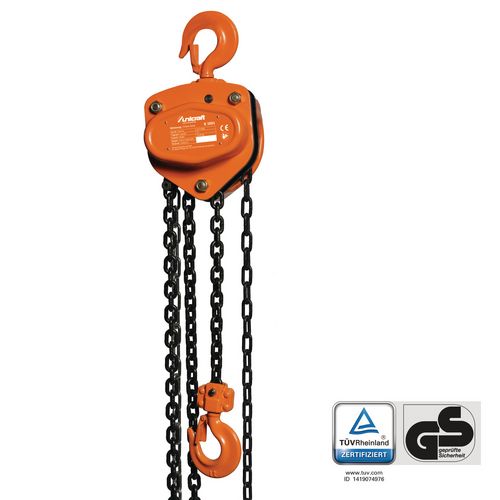

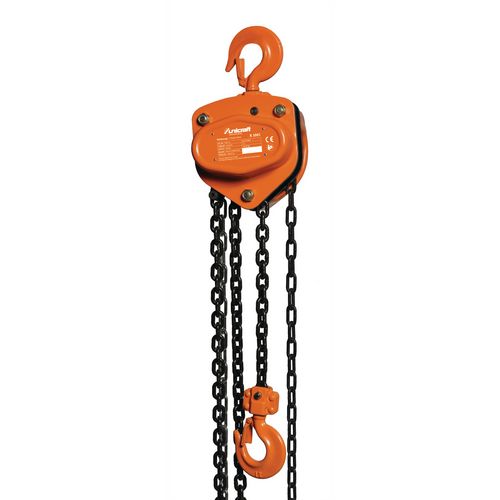

Chain hoist
K 1001
Manual version for lifting loads
85,90
EUR excl. Tax / pc(s).
102,22 EUR incl. 19% Tax / pc(s).
102,22 EUR incl. 19% Tax / pc(s).
Promotional price *
76,90 EUR excl. Tax / pc(s).91,51 EUR incl. 19% Tax / pc(s).
Prices are recommended retail prices. Retailer prices may vary.
* Promotional price valid until 31.08.2025 in Germany.
Art.-No. 6171001
Are you interested in this product?
Put a request
Find Trader
Productdetails
- Increased efficiency and reduced friction losses due to hardened gears and pinions on roller bearings
- Drop-forged, rotating load and suspension hooks with safety catch
- Galvanized load chain according to DIN ISO 3077
- High-strength, painted steel housing
K 1001
- Safe holding of the load by load pressure brake with asbestos-free brake discs
- Increased efficiency and reduced friction losses due to hardened gears and pinions on roller bearings
- Drop-forged, rotating load and suspension hooks with safety catch
- Galvanized load chain according to DIN ISO 3077
- High-strength, painted steel housing
| Load capacity | 1 t |
| Stroke | 3 m |
| Hand force at rated load | 320 N |
| Number of chain strands | 1 |
| VPE | 1 |
| Dimensions and weights | |
|---|---|
| Length approx. | 162 mm |
| Width/depth approx. | 146,5 mm |
| Height approx. | 317 mm |
| Weight approx. | 10.8 kg |
Unit: pc(s).
Packaging unit: 1
Packaging unit: 1
