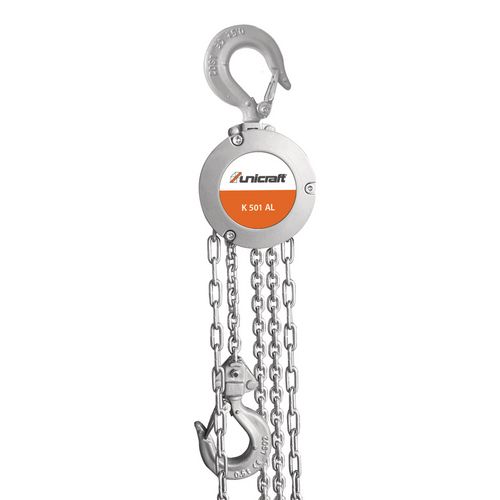

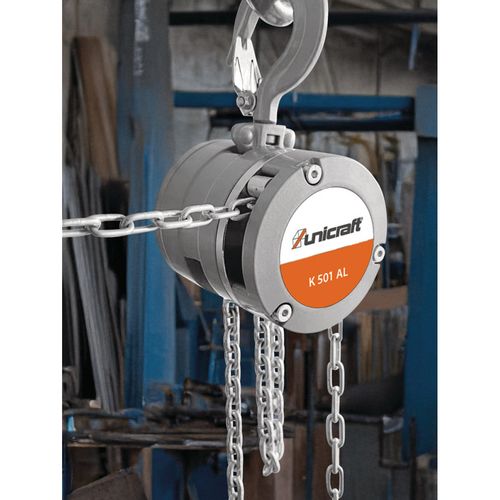

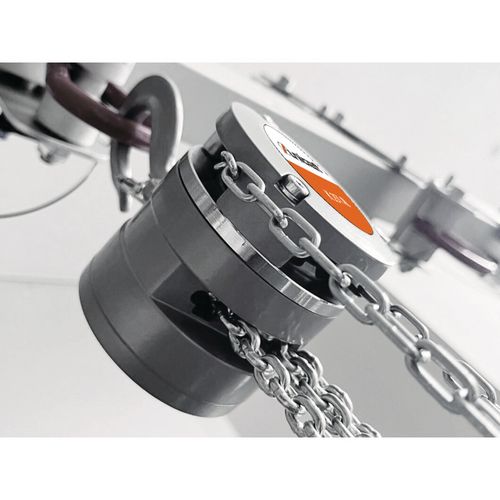

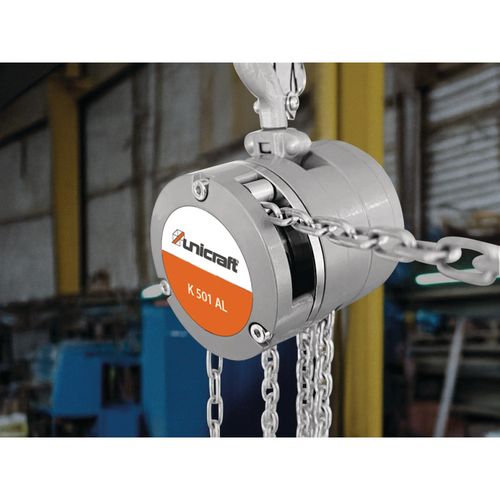

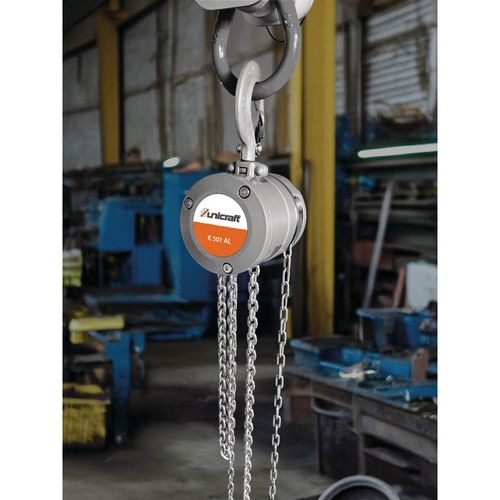

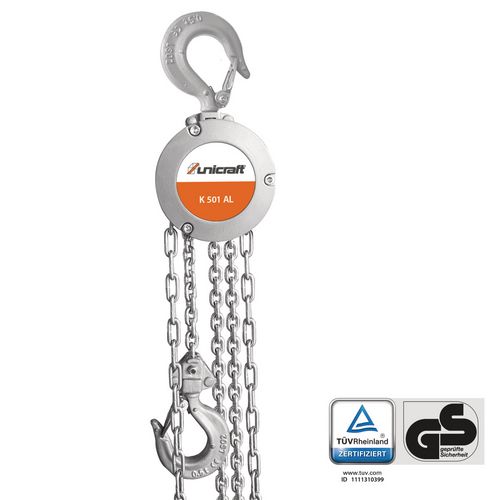

    Chain hoist

    K 501 AL

    360° aluminum chain hoist for lifting loads

    155,00 EUR excl. Tax / pc(s).
    184,45 EUR incl. 19% Tax / pc(s).

    Prices are recommended retail prices. Retailer prices may vary.

    Art.-No. 6171016

    Are you interested in this product?
  • Put a request
  • Find Trader

    • Productdetails

    • Light as a feather and robust: housing made of high-strength aluminum - maximum stability with minimum weight
    • Rotating load and suspension hook made of alloy steel with safety lock
    • Double ratchet for safe and reliable operation
    • Extremely strong end anchoring of the chain thanks to special precision casting
    • 360° hand chain guide enables safe lifting from any position and in confined spaces
    • Safe working: The operator can work outside the danger zone of the load.



    Load capacity0.5 t
    Stroke3 m
    Hand force at rated load213 N
    Number of chain strands1
    VPE1
    Dimensions and weights
    Load chain dimensions4.3 x 12 mm
    Length approx.106 mm
    Width/depth approx.103 mm
    Height approx.280 mm
    Weight approx.5.3 kg
    Unit: pc(s).
    Packaging unit: 1
