    5. MES 600-2

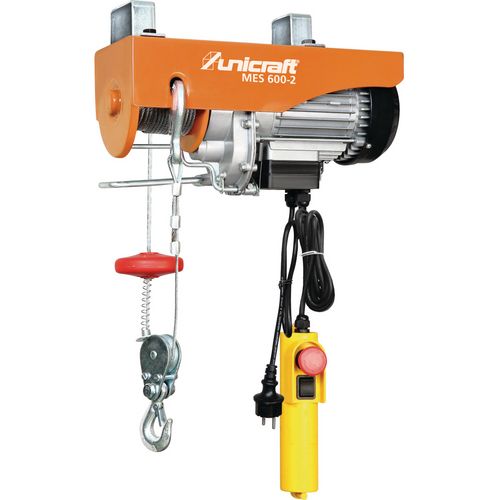

    Productimage for MES 600-2
    Brandimage to Product MES 600-2

    Mini electric cables

    MES 600-2

    With deadman switch for safe working

    169,00 EUR excl. Tax / pc(s).
    201,11 EUR incl. 19% Tax / pc(s).
    Promotional price *
    165,00 EUR excl. Tax / pc(s).
    196,35 EUR incl. 19% Tax / pc(s).

    Prices are recommended retail prices. Retailer prices may vary.
    * Promotional price valid until 31.08.2024 in Germany.

    Art.-No. 6198260

    Are you interested in this product?
  • Put a request
  • Find Trader

    • Productdetails

    • Emergency stop switch for safe working
    • Lifting height without/with deflection pulley 12 m/6 m
    • Pulley with load hook
    • With two sturdy double clamps for fastening
    • Control switch insulated according to IP54
    • Limit switch for immediate shutdown in upper and lower end position

    Note: The standard version of the electric wire rope hoist is equipped with a special clamp mounting system with a special profile for mounting on edge tubes. Accessories are required for mounting on round tubes.



    Control unit cable length1,5 m
    Lifting force without deflection pulley300 kg
    Lifting force with deflection pulley600 kg
    Stroke without deflection pulley12 m
    Stroke with deflection pulley6 m
    Max. lifting speed without deflection pulley8 m/min
    Max. lifting speed with deflection pulley4 m/min
    VPE1
    Dimensions and weights
    Cable diameter4.5 mm
    Inside dimensions of fastening clamps46 x 46 mm
    Weight approx.17.5 kg
    Drive output
    Main motor1050 W
    Electrical Data
    Degree of protectionIP 54
    Supply voltage230 V
    Mains frequency50 Hz
    Unit: pc(s).
    Packaging unit: 1







    If a guarantee is shown in the article description and/or in the description of the scope of delivery, your legal rights of liability for defects towards your seller remain unaffected. For the scope, duration, content and the guarantor, please refer to the guarantee conditions. We are not liable for printing errors, mistakes or incorrect presentation. Technical and optical changes are reserved. Fig. partly with optional accessories. Delivery is made exclusively according to our terms of delivery and payment. The sale is carried out via the specialized trade.
