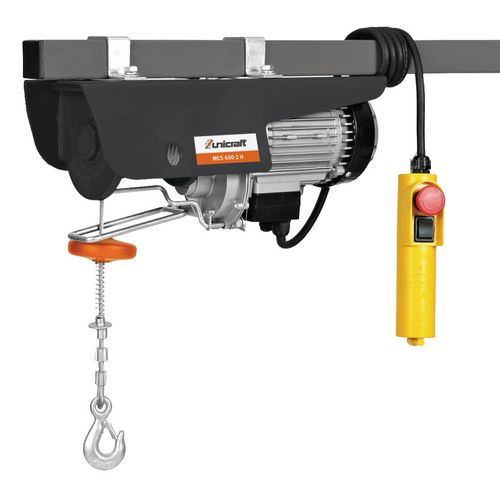

    Productimage for MES 600-2 H
    Brandimage to Product MES 600-2 H

    Mini electric cable

    MES 600-2 H

    for maximum strength and mobility

    169,00 EUR excl. Tax / pc(s).
    201,11 EUR incl. 19% Tax / pc(s).
    Promotional price *
    165,00 EUR excl. Tax / pc(s).
    196,35 EUR incl. 19% Tax / pc(s).

    Prices are recommended retail prices. Retailer prices may vary.
    * Promotional price valid until 31.08.2026 in Germany.

    Art.-No. 6198360

    Are you interested in this product?
  • Put a request
  • Find Trader

    • Productdetails

    • Integrated transport handle for mobile use
    • Pulley with load hook
    • Two double clamps for easy installation
    • Operating unit insulated to IP 54
    • Limit switch for immediate switch-off in the upper and lower end positions



    Control unit cable length1.5 m
    Lifting force without deflection pulley300 kg
    Lifting force with deflection pulley600 kg
    Stroke without deflection pulley12 m
    Stroke with deflection pulley6 m
    Max. lifting speed without deflection pulley8 m/min
    Max. lifting speed with deflection pulley4 m/min
    VPE1
    Dimensions and weights
    Cable diameter4.5 mm
    Inside dimensions of fastening clamps46 x 46 mm
    Length approx.445 mm
    Width/depth approx.154 mm
    Height approx.220 mm
    Weight approx.17.5 kg
    Electrical Data
    Degree of protectionIP 54
    Main motor1.05 kW
    Supply voltage230 V
    Mains frequency50 Hz
    Unit: pc(s).
    Packaging unit: 1

    • Two fastening clamps
    • One pulley hook
    • Four screws and washers
