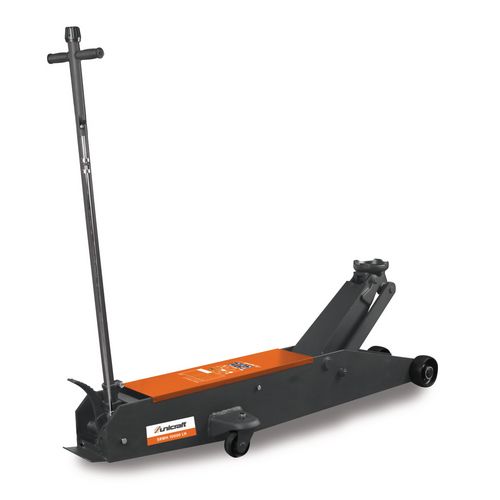

Trolley jack
SRWH 10000 LH
Special maneuvering jack with foot pedal for lifting with quick lift
1.019,00
EUR excl. Tax / pc(s).
1.212,61 EUR incl. 19% Tax / pc(s).
1.212,61 EUR incl. 19% Tax / pc(s).
Promotional price *
929,00 EUR excl. Tax / pc(s).1.105,51 EUR incl. 19% Tax / pc(s).
Prices are recommended retail prices. Retailer prices may vary.
* Promotional price valid until 31.08.2025 in Germany.
Art.-No. 6201155
Are you interested in this product?
Put a request
Find Trader
Productdetails
- Particularly long design for extra stability
- Additional foot pedal for lifting with quick lift
- Robust construction
- Steel load and swivel castors
- Slow and safe lowering when loaded thanks to large support plate
- Valve control via internal linkage with rotary knob
- Rubber-coated T-handle for easy maneuvering
- Particularly long design for extra stability
- Additional foot pedal for lifting with quick lift
- Steel load and swivel castors
- Slow and safe lowering when loaded thanks to large support plate
| Load capacity | 10 t |
| Lifting | 525 mm |
| Lifting height | 685 mm |
| Min. clearance | 160 mm |
| Max. clearance | 685 mm |
| Inside width | 270 mm |
| Outside width | 494 mm |
| Max. length | 1637.5 mm |
| Castor diameter | 91 mm |
| Castor width | 40 mm |
| Castor material | HT150 |
| Load roller diameter | 141 mm |
| Load roller width | 63 mm |
| Load roller material | HT150 |
| VPE | 1 |
| Dimensions and weights | |
|---|---|
| Length approx. | 1637.5 mm |
| Width/depth approx. | 494 mm |
| Height approx. | 249 mm |
| Weight approx. | 133 kg |
Unit: pc(s).
Packaging unit: 1
Packaging unit: 1
