    Brandimage to Product GHHW 1000

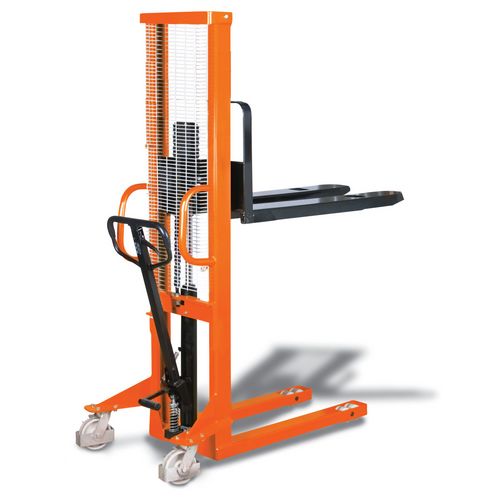

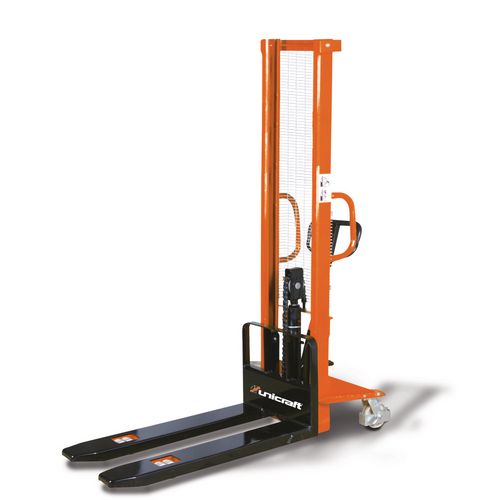

    Stacker

    GHHW 1000

    Especially suitable for loading and unloading vehicles

    1.279,00 EUR excl. Tax / pc(s).
    1.522,01 EUR incl. 19% Tax / pc(s).
    Promotional price *
    1.099,00 EUR excl. Tax / pc(s).
    1.307,81 EUR incl. 19% Tax / pc(s).

    Prices are recommended retail prices. Retailer prices may vary.
    * Promotional price valid until 31.08.2025 in Germany.

    Sicherheits- und Warnhinweise

    Safety and warning notices

    Art.-No. 6151016

    Are you interested in this product?
  • Put a request
  • Find Trader

    • Productdetails

    • Facilitates handling and transportation in the warehouse and workshop
    • Can be used for high stacking and short transport
    • No sparks due to static charge and no electromagnetic fields, therefore also suitable for flammable or explosive substances
    • Robust steel profile construction with high-quality welded seams
    • Fixed fork width for stable lifting of the load

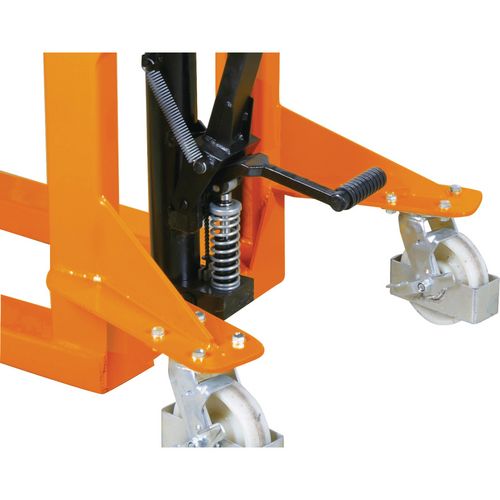

    • Solidly built lifting device with manually operated hydraulic pump

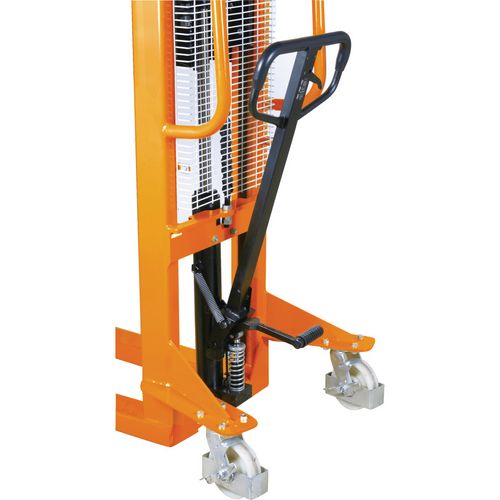

    • The lifting function is particularly easy and effortless to operate thanks to the foot and hand levers
    • Fits well through all door openings and fully occupied warehouses thanks to its compact design
    • Equipped with low-wear castors and swivel nylon rear wheels with ball bearings for smooth handling
    • Equipped with durable precision mechanics



    • Facilitates handling and transportation in the warehouse and at the workplace
    • Can be used for high stacking and short transport
    • No sparks due to static charge and no electromagnetic fields, therefore also suitable for flammable or explosive materials
    • Lifting function is particularly easy to operate thanks to foot and hand levers
    • Equipped with low-wear castors and swivel nylon rear wheels with ball bearings for smooth movement



    Data sheets
    Sicherheits- und Warnhinweise
    Safety and warning notices
    Load capacity1 t
    Load-bearing width550 mm
    Fork width170 mm

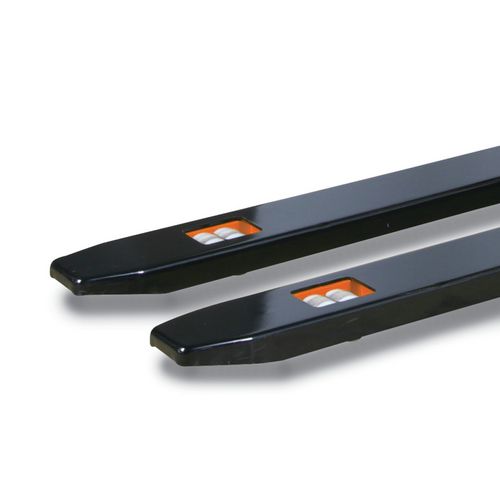

    Fork length1150 mm
    Lifting range90 – 1600 mm
    Turning radius1380 mm
    VPE1
    Dimensions and weights
    Steering rollers diameter147 mm
    Steering rollers width40 mm
    Fork roller diameter83 mm
    Fork roller width60 mm
    Length approx.1705 mm
    Width/depth approx.755 mm
    Height approx.1980 mm
    Weight approx.230 kg
    Unit: pc(s).
    Packaging unit: 1







    Fork roller designTandem
